a) Find the transfer functions G(s)= Vo(s)/Vi(s) of circuits given below b) Write the spacestate model of (a) circuit c)

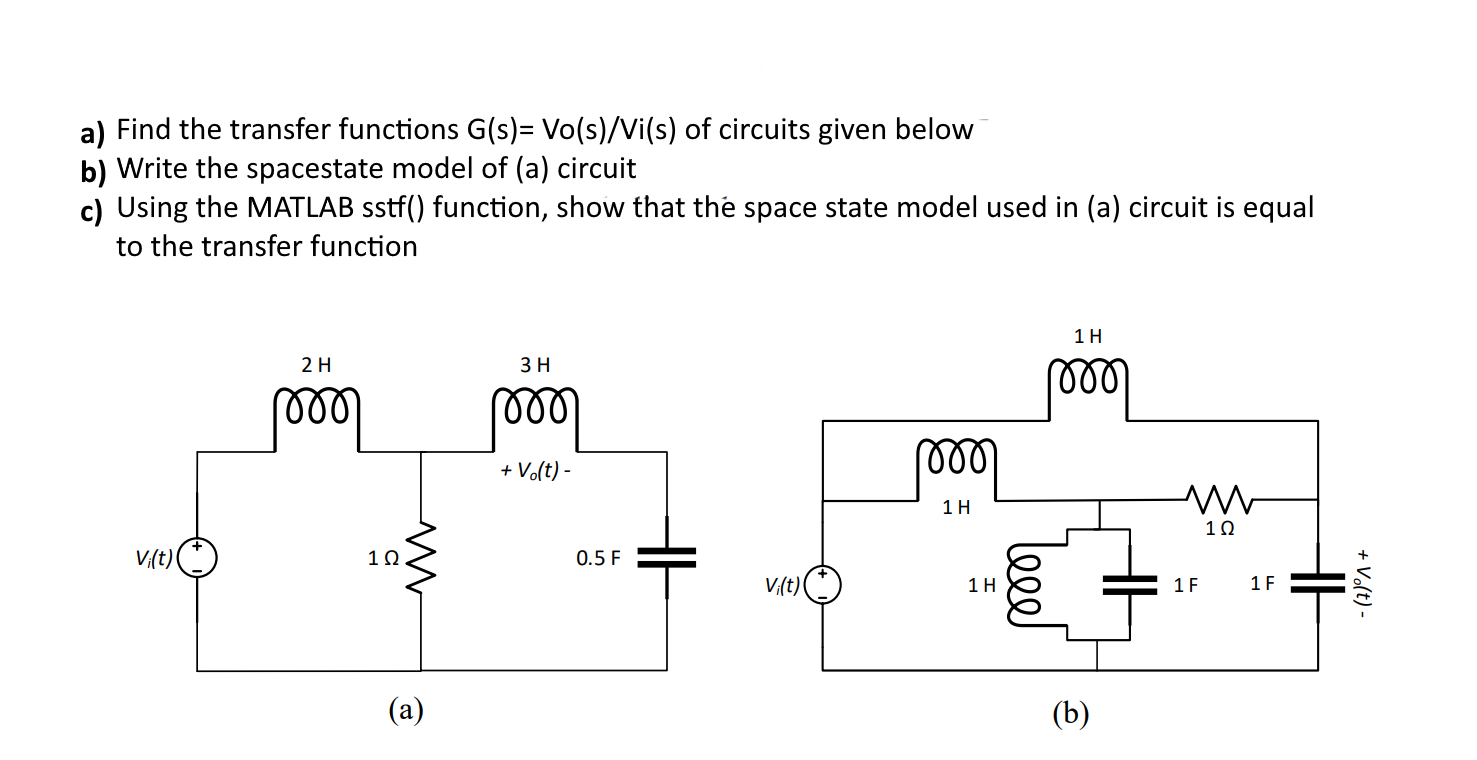

a) Find the transfer functions G(s)= Vo(s)/Vi(s) of circuits given below b) Write the spacestate model of (a) circuit c) Using the MATLAB sstf() function, show that the space state model used in (a) circuit is equal to the transfer function 1 H 2 H 3 H 000 ရ 888 00 000 + Vo(t) - 1 H WWW 1 2 V(t) 1 ဂ 0.5 F V,(t) 1 H leee 1 F 1 F IF + Vot) - (a) (b)
