theme: electric machines

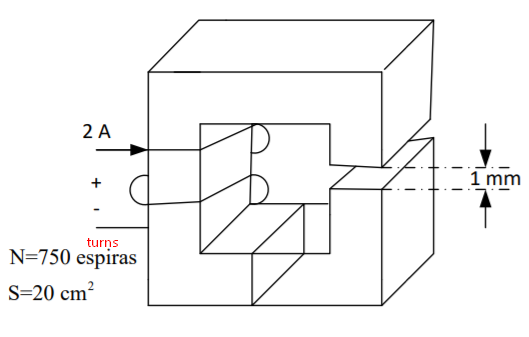

N 2.-The figure shows a circuit
magnetic sheet metal.
The air gap is 1 mm, the magnetic length
average length of the sheet metal structure is 1 m and the
cross section is uniform 2 value 20 cm
Calculate the magnetic induction in the air gap.
Theme Electric Machines N 2 The Figure Shows A Circuit Magnetic Sheet Metal The Air Gap Is 1 Mm The Magnetic Length 1 (25.12 KiB) Viewed 35 times
2 A 1 mm turns N=750 espiras S=20 cm
