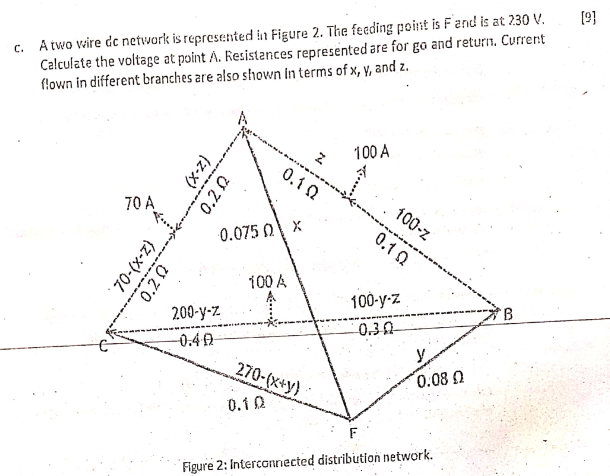

[9] c. A two veire dc network is represented in Figure 2. The feeding point is Fand is at 230 V. Calculate the voltage a

[answerhappygod]

9 C A Two Veire Dc Network Is Represented In Figure 2 The Feeding Point Is Fand Is At 230 V Calculate The Voltage A 1 (188.59 KiB) Viewed 32 times

[9] c. A two veire dc network is represented in Figure 2. The feeding point is Fand is at 230 V. Calculate the voltage at point A. Resistances represented are for go and return. Current flown in different branches are also shown in terms of x, y, and z. Z 100 A (x-2) 0.20 0.102 70 A 100-Z 0.0750X 0.12 70-(x-z) 0.20 100 A 100-y-z 0.30 200-y-7 -0.402 В 270-(x+y) y 0.08 0.10 F Figure 2: Interconnected distribution network.
