1. a) Determine the following for the digital structure of Filter shown in Figure 1 x[n] Z y[n] Figure 1 i) The Z-transf

[answerhappygod]

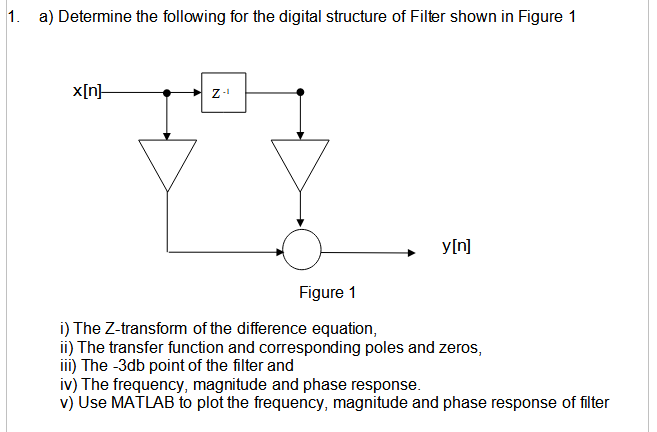

1 A Determine The Following For The Digital Structure Of Filter Shown In Figure 1 X N Z Y N Figure 1 I The Z Transf 1 (20.36 KiB) Viewed 22 times

1. a) Determine the following for the digital structure of Filter shown in Figure 1 x[n] Z y[n] Figure 1 i) The Z-transform of the difference equation, ii) The transfer function and corresponding poles and zeros, iii) The -3db point of the filter and iv) The frequency, magnitude and phase response. v) Use MATLAB to plot the frequency, magnitude and phase response of filter
