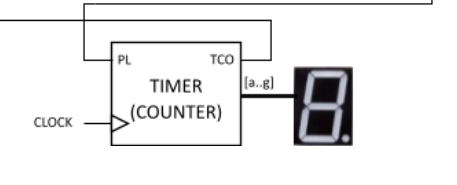

PL TCO TIMER la..g] (COUNTER) CLOCK
Pleas build the timer circuit ais a separate module. The module should one have clock input, one parallel load input Pin (PL), one terminal count output pin (Teol, and seven outputs to be connected to 7-segment display. Then, create a symbol file from the timer circuit show the Schemetic * Please diagram and steps in Quartus l. Thank you very much .
