Voc RC R с C2 РЕ E R2 RE Given : B = 100, VCC = 15, RB1 = 250K, RB2 = 150K, RC = 5K, RE = 470 = = = Solve for RIN(BASE),

Post by answerhappygod »

1
1 (88.14 KiB) Viewed 19 times

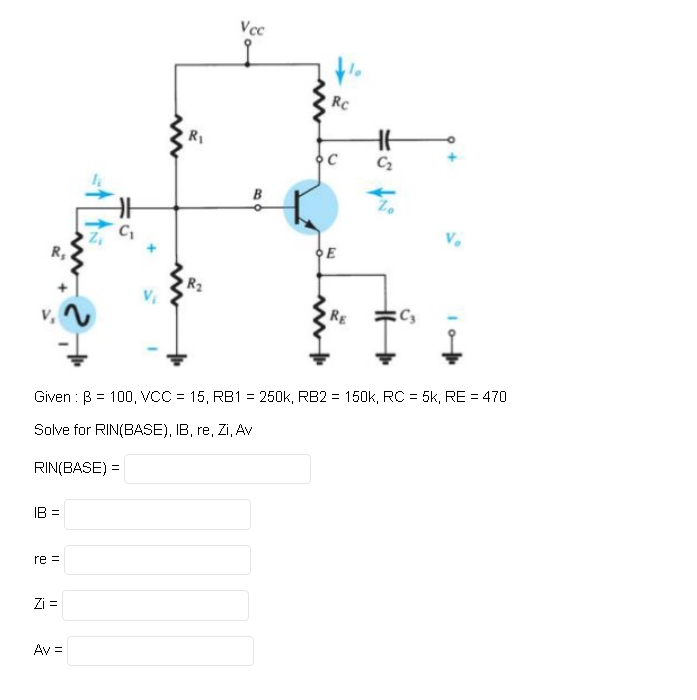

Voc RC R с C2 РЕ E R2 RE Given : B = 100, VCC = 15, RB1 = 250K, RB2 = 150K, RC = 5K, RE = 470 = = = Solve for RIN(BASE), IB, re, Zi, Av RIN(BASE) = IB = re Zi = Av =
