4.) WORTH 29 POINTS The 2-pole motor in a PMAC drive has the following parameters: R = 50, L=0.1 H, and K-K+0.5. Assume

[answerhappygod]

4 Worth 29 Points The 2 Pole Motor In A Pmac Drive Has The Following Parameters R 50 L 0 1 H And K K 0 5 Assume 1 (39.47 KiB) Viewed 43 times

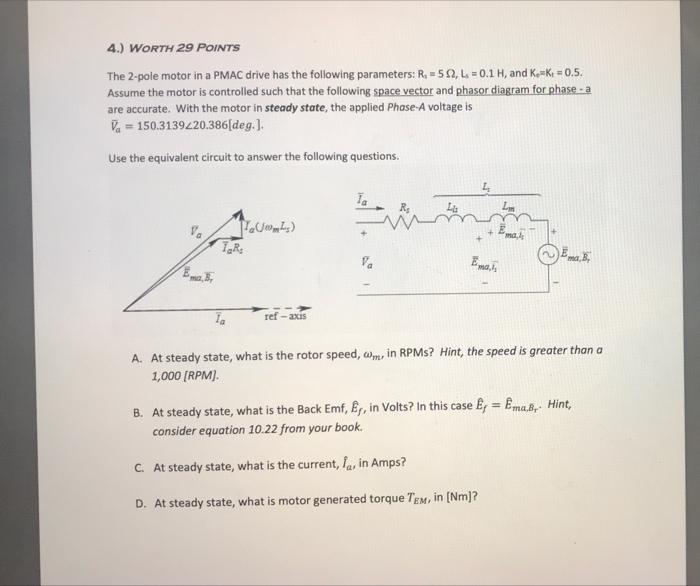

4.) WORTH 29 POINTS The 2-pole motor in a PMAC drive has the following parameters: R = 50, L=0.1 H, and K-K+0.5. Assume the motor is controlled such that the following space vector and phasor diagram for phase - a are accurate. With the motor in steady state, the applied Phase-A voltage is V = 150.3139220.386[deg.). Use the equivalent circuit to answer the following questions. Ta LG L (پاپی ہے ۔ Em IR va Emai Ema, Ta ref-axis A. At steady state, what is the rotor speed, m, in RPMs? Hint, the speed is greater than a 1,000 (RPM). B. At steady state, what is the Back Emf, Es, in Volts? In this case E, = ma... Hint, consider equation 10.22 from your book C. At steady state, what is the current, 1, in Amps? D. At steady state, what is motor generated torque Tem, in [Nm]?
