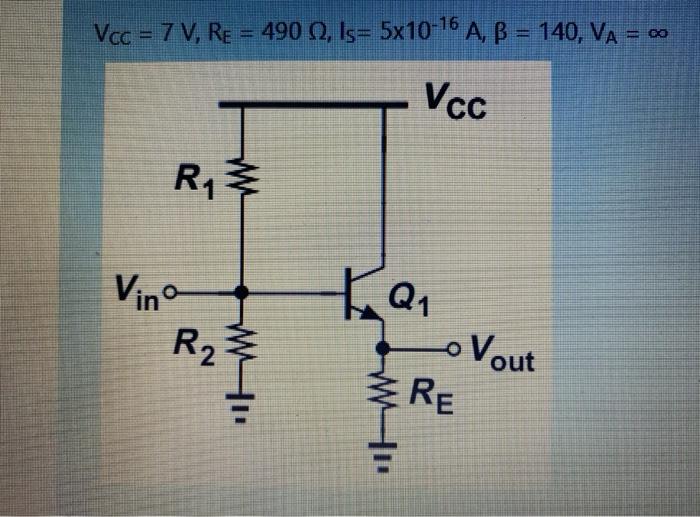

Vcc = 7 V, R = 490 Q, Is= 5x10-16 A, B = 140, VA - - Vcc RA w Vina R2 WY КQ Q1 Vout RE wi

[answerhappygod]

1 (67.7 KiB) Viewed 30 times

We wish to design the circuit shown below for a collector current of 2,4 mA. Answer the following questions and choose only one answer for each question.
- Compute the base current IB .
- Compute the required value of base potential, VB. Assume that IE=IC .
- Compute the required value of R2 such that this resistor carry a current equal to 19 times of IB. Assume that the base current IB can be negligible in the calculation of base potential.
- Calculate the output impedance Rout for the circuit shown in figure. Assume VA = ∞.
A)IB=171,43 μAB)R2=8,615 kΩC)VB=2,419 VD)Rout=8,9 ΩE)Rout=10,5 ΩF)Rout=18,4 ΩG)Rout=12,6 ΩI)R2=5,941 kΩK)VB=1,684 VL)IB=1,71 μAM)IB=17,14 μAN)VB=2,225 VO)R2=7,130 kΩP)VB=1,935 VR)R2=5,050 kΩ
A)IB=171,43 μA
B)R2=8,615 kΩ
C)VB=2,419 V
D)Rout=8,9 Ω
E)Rout=10,5 Ω
F)Rout=18,4 Ω
G)Rout=12,6 Ω
I)R2=5,941 kΩ
K)VB=1,684 V
L)IB=1,71 μA
M)IB=17,14 μA
N)VB=2,225 V
O)R2=7,130 kΩ
P)VB=1,935 V
R)R2=5,050 kΩ
