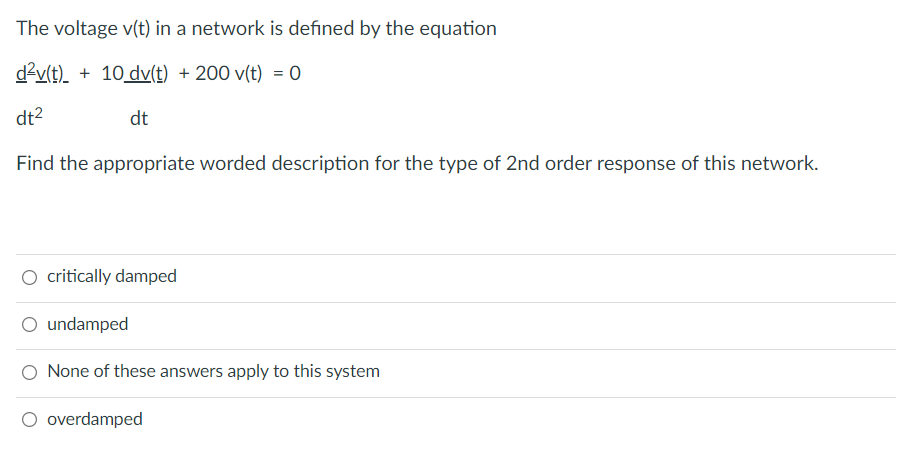

The voltage v(t) in a network is defined by the equation d2x(t). + 10 dy(t) + 200 v(t) = 0 dt2 dt Find the appropriate worded description for the type of 2nd order response of this network. O critically damped O undamped O None of these answers apply to this system O overdamped
For the 2nd order system of Question 8, the roots of network in the s-domain are two distinct roots on the negative real axis coincident roots on the negative real axis Cannot be determined from the information given complex, having both real and imaginary components
For the 2nd order system of Question 8, the damping factor, zeta (5) has a value that matches which one of the following options O % = 1 O S = 0 O 0< 5 < 1 0 > 1
