3. (4 points) A silicon (Si) slab uniformly doped with 2 x 1017/cmº arsenic atoms has the dimension of L = 3 um, w = 0.5

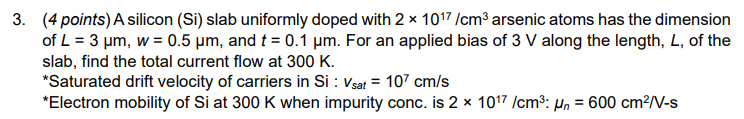

3. (4 points) A silicon (Si) slab uniformly doped with 2 x 1017/cmº arsenic atoms has the dimension of L = 3 um, w = 0.5 um, and t = 0.1 um. For an applied bias of 3 V along the length, L, of the slab, find the total current flow at 300 K. *Saturated drift velocity of carriers in Si : Vsat = 107 cm/s *Electron mobility of Si at 300 K when impurity conc. is 2 * 1017 /cm3: Mn = 600 cm2N-s
