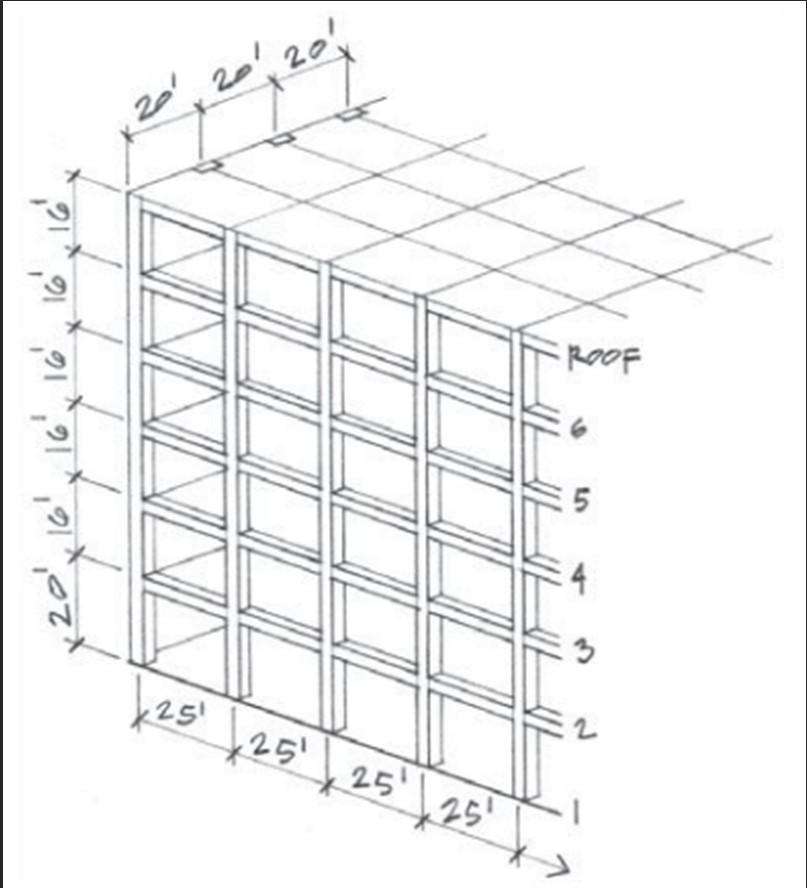

that is appropriately fireproofed. The columns are spaced 20 feet
o.c. in one direction and 25 feet o.c. in the perpendicular
direction. The governing building code specifies that the frame
must be designed to withstand the dead weight of the structure plus
a roof snow load of -- psf and a live load on each floor of -- psf.
The dead weight of the roof is estimated to be -- psf, and each
subsequent floor is -- psf. The unsupported length of the ground
floor column is 20 feet, and the columns at the other floor levels
are 16 feet.
- A Six Story Building Has A Structural Steel Beam Column Frame That Is Appropriately Fireproofed The Columns Are Spaced 1 (57.32 KiB) Viewed 41 times
Roof Dead Load (psf) = 70
Floor Dead load (psf) = 100
Floor Live Load (psf) = 115
Please show all steps that would be great!
. ROOF कामा 5 3 425 . 251 25 )
