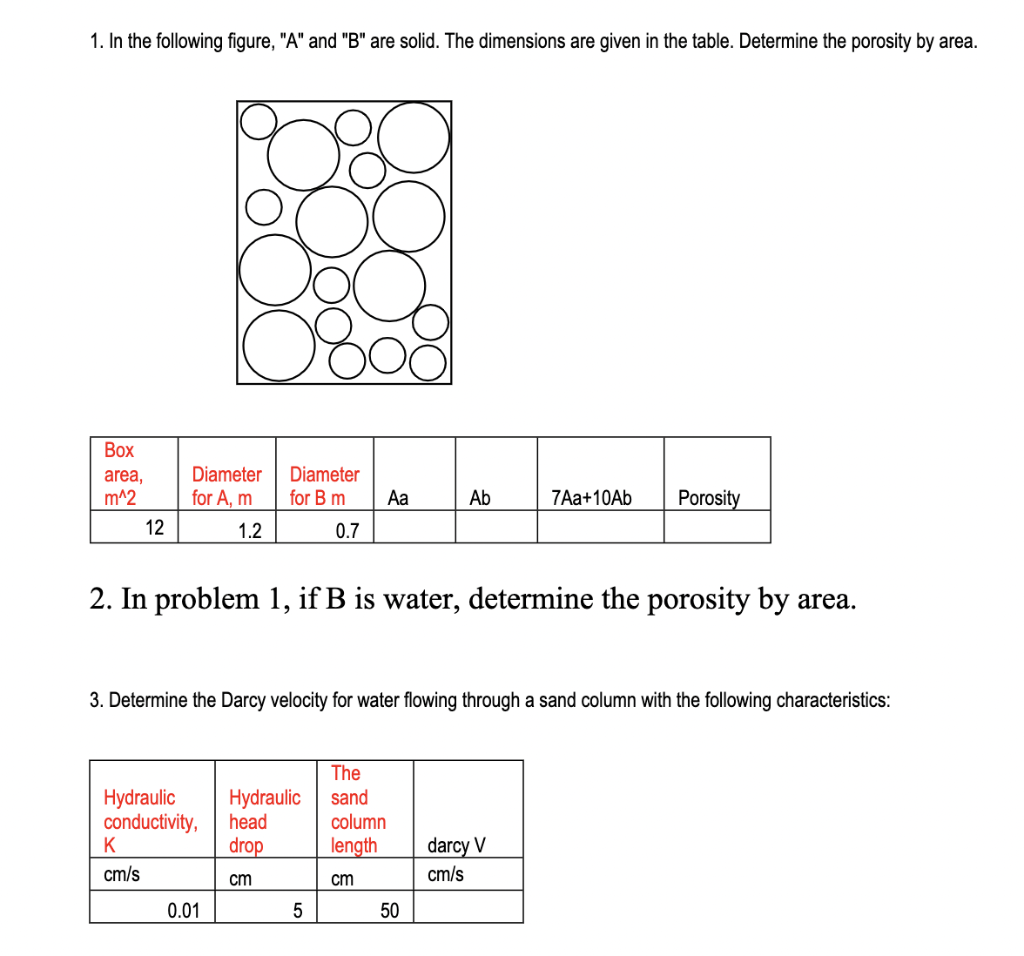

1. In the following figure, "A" and "B" are solid. The dimensions are given in the table. Determine the porosity by area
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. In the following figure, "A" and "B" are solid. The dimensions are given in the table. Determine the porosity by area
1. In the following figure, "A" and "B" are solid. The dimensions are given in the table. Determine the porosity by area. Box area, m^2 Diameter for A, m Diameter for B m Аа Ab 7Aa+10Ab Porosity 12 1.2 0.7 2. In problem 1, if B is water, determine the porosity by area. 3. Determine the Darcy velocity for water flowing through a sand column with the following characteristics: Hydraulic conductivity, к cm/s Hydraulic head drop The sand column length darcy V cm cm cm/s 0.01 5 50
