find the declection of point B, D, E, and F ? link AB ; E = 180 GPa area AB = 700 mm2 link CD ; E = 200 GPa area CD = 80

Post by answerhappygod »

find the declection of point B, D, E, and F ?
link AB ; E = 180 GPa
area AB = 700 mm2
link CD ; E = 200 GPa
area CD = 800 mm2
Find The Declection Of Point B D E And F Link Ab E 180 Gpa Area Ab 700 Mm2 Link Cd E 200 Gpa Area Cd 80 1
Find The Declection Of Point B D E And F Link Ab E 180 Gpa Area Ab 700 Mm2 Link Cd E 200 Gpa Area Cd 80 1 (263.14 KiB) Viewed 33 times

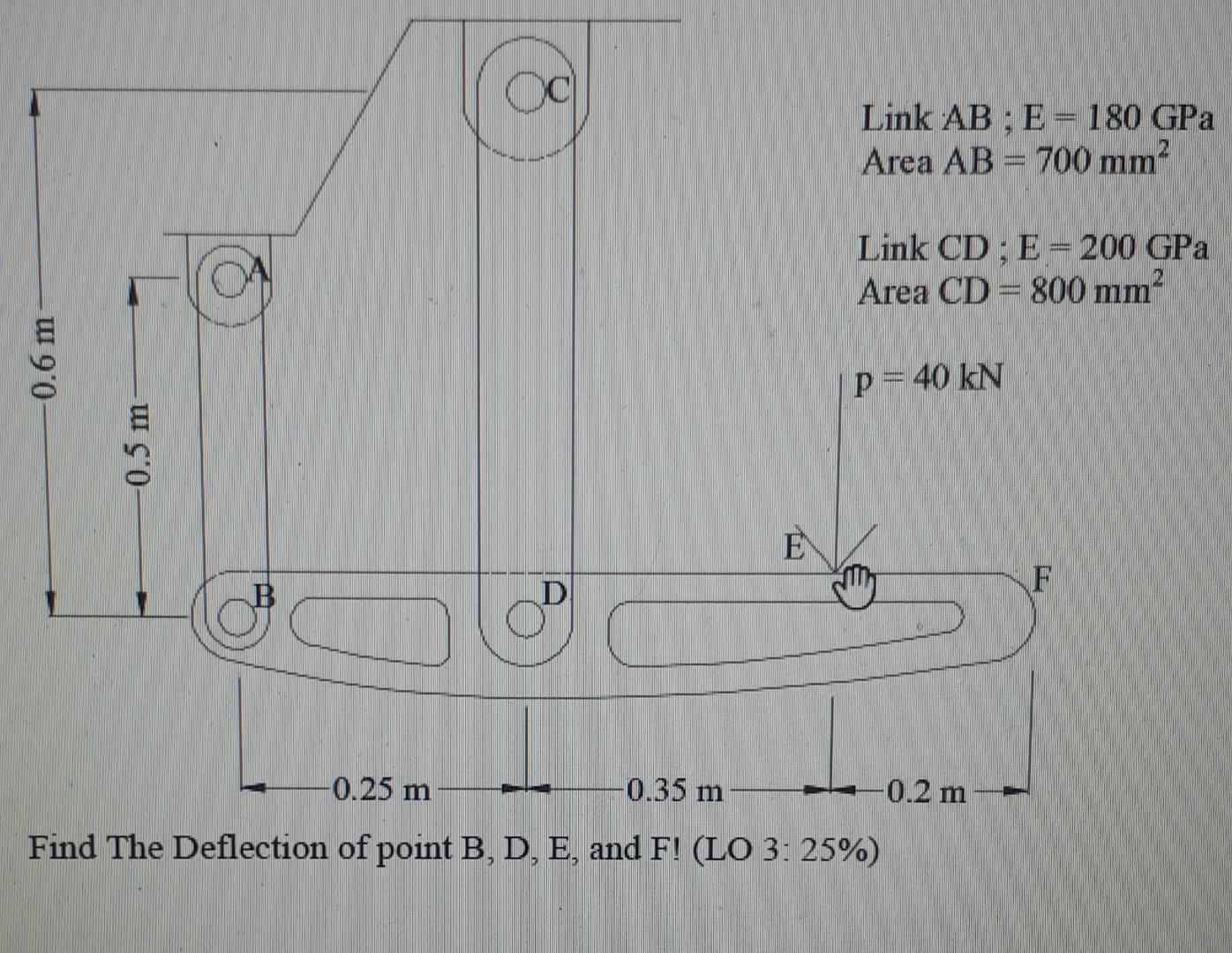

oc Link AB : E= 180 GPa Area AB = 700 mm? M Link CD; E = 200 GPa Area CD = 800 mm 0.6 m p = 40 kn 0.5 m E F B D -0.25 m 0.35 m -0.2 m Find The Deflection of point B, D, E, and F! (LO 3: 25%)
