7.1 Use the rational method to determine the peak RDII in the pipe segment down- stream of each inlet in the combined se

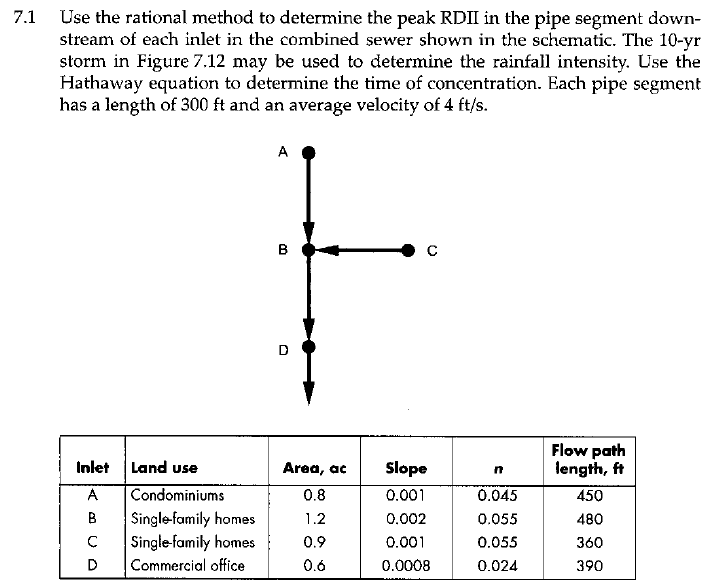

7.1 Use the rational method to determine the peak RDII in the pipe segment down- stream of each inlet in the combined sewer shown in the schematic. The 10-yr storm in Figure 7.12 may be used to determine the rainfall intensity. Use the Hathaway equation to determine the time of concentration. Each pipe segment has a length of 300 ft and an average velocity of 4 ft/s. А B D Inlet n А B C D Land use Condominiums Single family homes Single family homes Commercial office Area, ac 0.8 1.2 0.9 0.6 Slope 0.001 0.002 0.001 0.0008 0.045 0.055 0.055 0.024 Flow path length, ft 450 480 360 390
