Consider the beam in (Figure 1). Click on "add vertical line off" to add discontinuity lines. Then click on "add segment

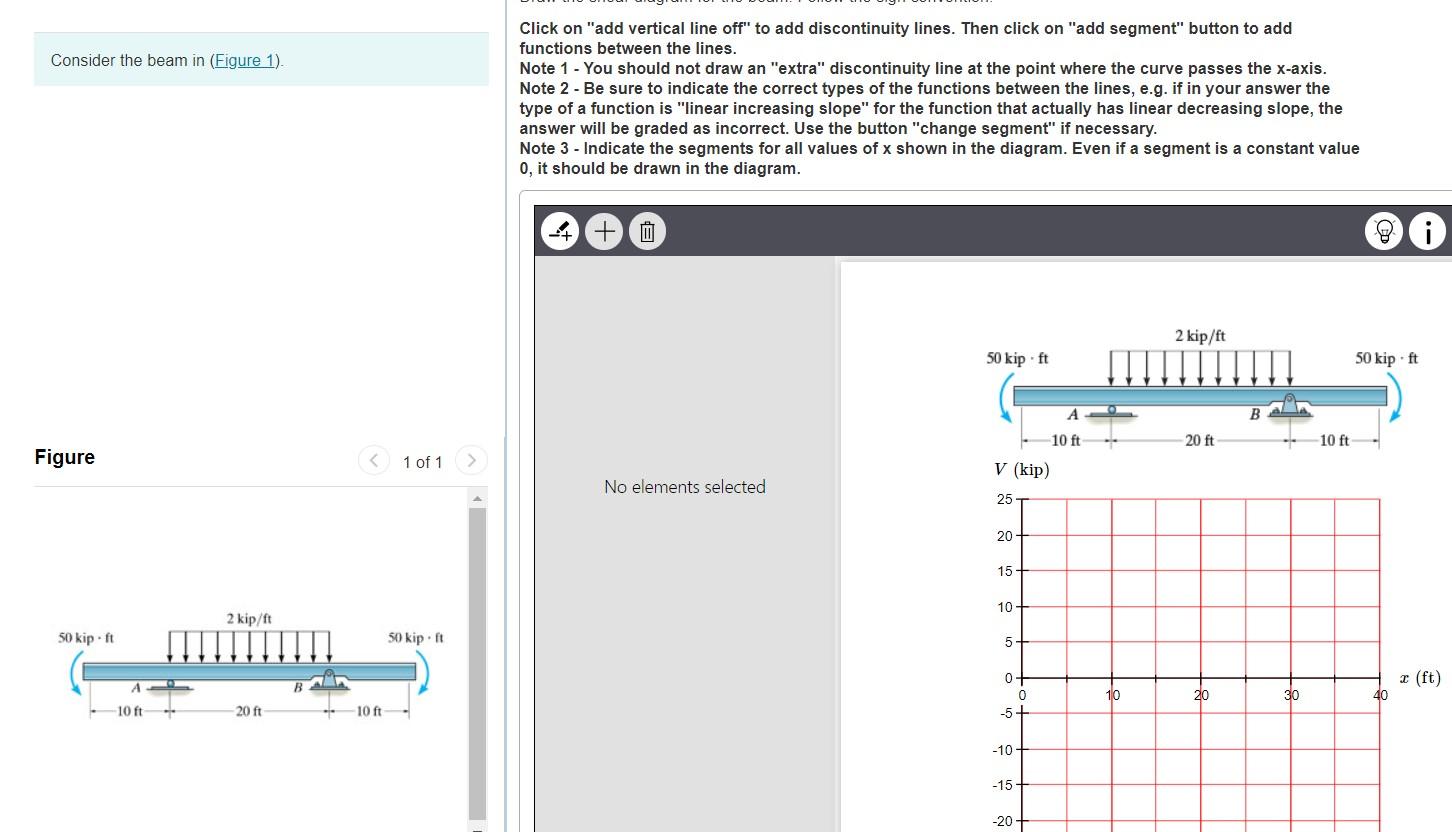

Consider the beam in (Figure 1). Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note 1 - You should not draw an "extra" discontinuity line at the point where the curve passes the x-axis. Note 2 - Be sure to indicate the correct types of the functions between the lines, e.g. if in your answer the type of a function is "linear increasing slope" for the function that actually has linear decreasing slope, the answer will be graded as incorrect. Use the button "change segment" if necessary. Note 3 - Indicate the segments for all values of x shown in the diagram. Even if a segment is a constant value 0, it should be drawn in the diagram. 0 2 kip/ft 50 kipft 50 kip. ft B 10 ft 20 ft 10 ft Figure < 1 of 1 > V (kip) No elements selected 25 20 15 10 2 kip/it 50 kip.ft 50 kip.it 5 (ft) B 0 0 -5+ 10 20 30 40 10 ft- 20 ft 10 ft -10 -15 -20+
