Q2/1 A floor system consists of concrete slab supported by continuous beam with: hy = 140mm, bw = 300mm , d = 550mm, f=

Post by answerhappygod »

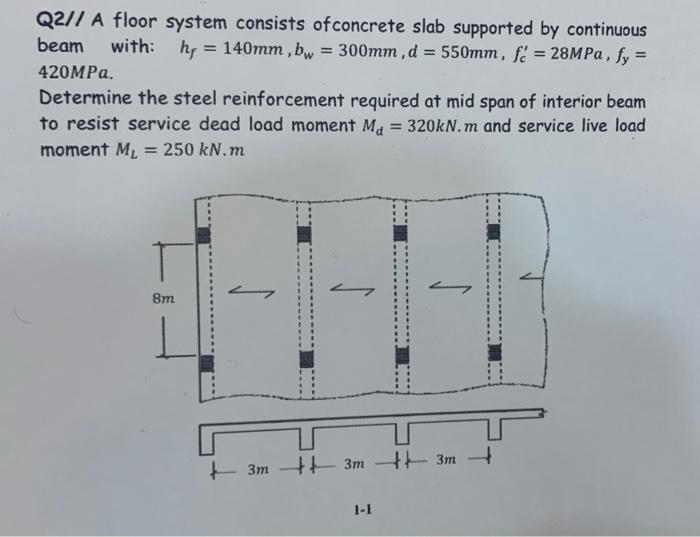

Q2 1 A Floor System Consists Of Concrete Slab Supported By Continuous Beam With Hy 140mm Bw 300mm D 550mm F 1
Q2 1 A Floor System Consists Of Concrete Slab Supported By Continuous Beam With Hy 140mm Bw 300mm D 550mm F 1 (34.35 KiB) Viewed 18 times
Q2/1 A floor system consists of concrete slab supported by continuous beam with: hy = 140mm, bw = 300mm , d = 550mm, f= 28MPa, fy = 420MPa. Determine the steel reinforcement required at mid span of interior beam to resist service dead load moment Ma = 320kN.m and service live load moment ML = 250 kN.m 8m 3m 3m 3m 1-1
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
