la) 20 (b)/ 34/3 FIGURE 4.3 Two sections with the same area. (a) A flat section. (b) A V-section. Figure 4.3 shows two c

Post by answerhappygod »

La 20 B 34 3 Figure 4 3 Two Sections With The Same Area A A Flat Section B A V Section Figure 4 3 Shows Two C 1
La 20 B 34 3 Figure 4 3 Two Sections With The Same Area A A Flat Section B A V Section Figure 4 3 Shows Two C 1 (14.49 KiB) Viewed 23 times

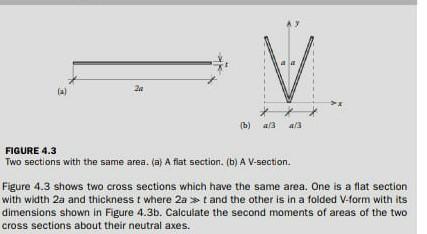

la) 20 (b)/ 34/3 FIGURE 4.3 Two sections with the same area. (a) A flat section. (b) A V-section. Figure 4.3 shows two cross sections which have the same area. One is a flat section with width 2a and thickness t where 2a »t and the other is in a folded V-form with its dimensions shown in Figure 4.3b. Calculate the second moments of areas of the two cross sections about their neutral axes.
