- Determine The Reaction At Supports Internal Normal Force N Shear Force V And Bending Moment M In The Beam Shown 1 (125.28 KiB) Viewed 26 times
determine the reaction at supports, internal normal force (N), shear force (V) and bending moment (M) in the beam shown
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
determine the reaction at supports, internal normal force (N), shear force (V) and bending moment (M) in the beam shown
determine the reaction at supports, internal normal force (N), shear force (V) and bending moment (M) in the beam shown below.
XX = 22

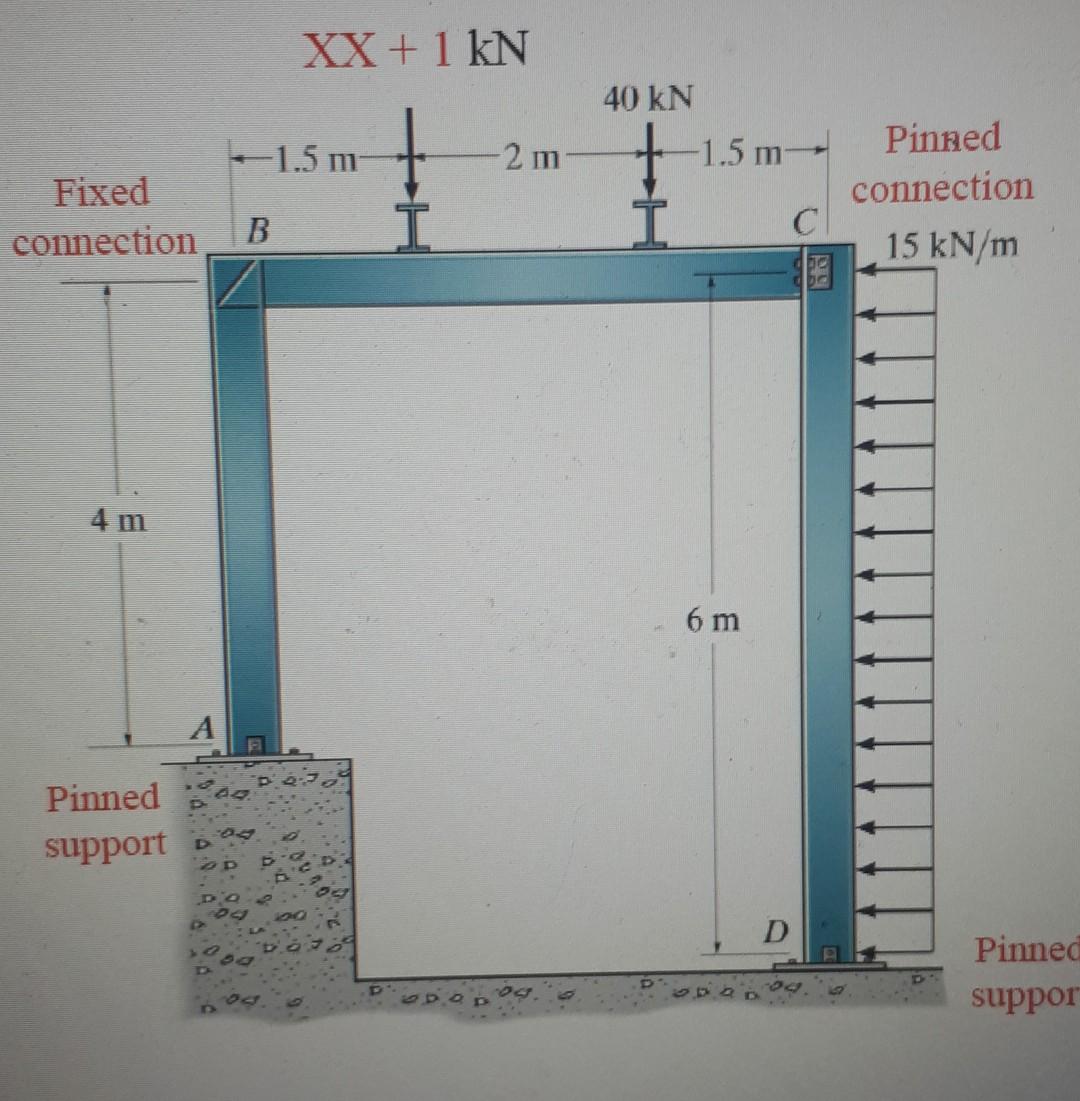

XX + 1 kN 1.5 m 2 m Fixed connection 40 KN -1.5 m -- Pinned connection Í С 15 kN/m B. 4 m 6 m A Pinned support ар D Pinned suppor
XX = 22
XX + 1 kN 1.5 m 2 m Fixed connection 40 KN -1.5 m -- Pinned connection Í С 15 kN/m B. 4 m 6 m A Pinned support ар D Pinned suppor
