22 Kn M P 9 Mh B L 12 M Figure 1 Two Hinged Arch With Loading Condition Task 1 Analysis Of A Two Hinged Parabolic Arc 1 (27.26 KiB) Viewed 19 times

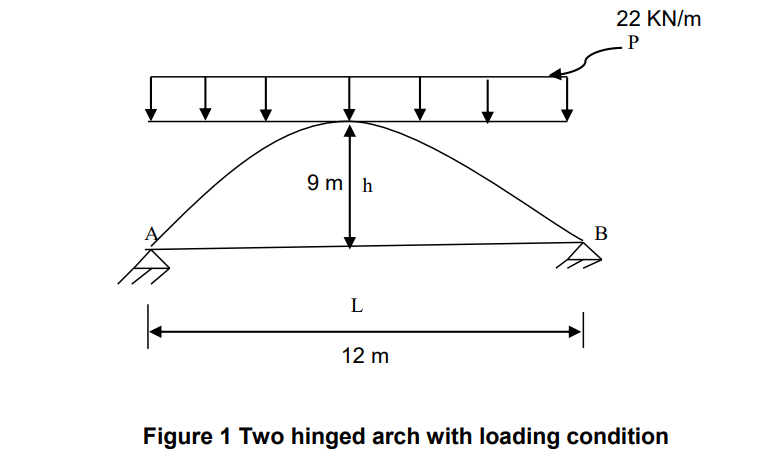

22 KN/m P 9 mh B L 12 m Figure 1 Two hinged arch with loading condition
Task 1 -Analysis of a two hinged parabolic arch 1. A two hinged parabolic arch with a span of 'l'm carries a UDL of 'P' kN/m over the entire span. The rise of the arch is ‘n’ m. Determine (a) Vertical Reaction at Supports (b) Horizontal thrust (c) Bending Moment (d) Normal Thrust and (e) Radial shear at a section 3m from the left end.
