Use the Muskingum Method with K= 50min, X=0.25 to estimate the
outflow hydrograph 2000m downstream from the channel section where
the following unit hydrograph was obtained with a base flow of 15m3
/s and a runoff of 20mm.

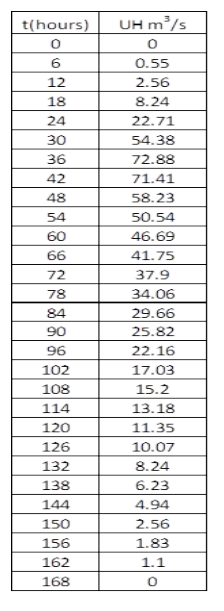

Use The Muskingum Method With K 50min X 0 25 To Estimate The Outflow Hydrograph 2000m Downstream From The Channel Sect 1 (48.27 KiB) Viewed 31 times

t(hours) 0 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120 126 132 138 144 150 156 162 168 UH m/s 0 0.55 2.56 8.24 22.71 54.38 72.88 71.41 58.23 50.54 46.69 41.75 37.9 34.06 29.66 25.82 22.16 17.03 15.2 13.18 11.35 10.07 8.24 6.23 4.94 2.56 1.83 1.1 0
