3. Determine the moments at A, B and C, then draw the moment diagram for the frame shown in Fig. 3. Assume all joints ar

Post by answerhappygod »

3 Determine The Moments At A B And C Then Draw The Moment Diagram For The Frame Shown In Fig 3 Assume All Joints Ar 1
3 Determine The Moments At A B And C Then Draw The Moment Diagram For The Frame Shown In Fig 3 Assume All Joints Ar 1 (28.9 KiB) Viewed 40 times

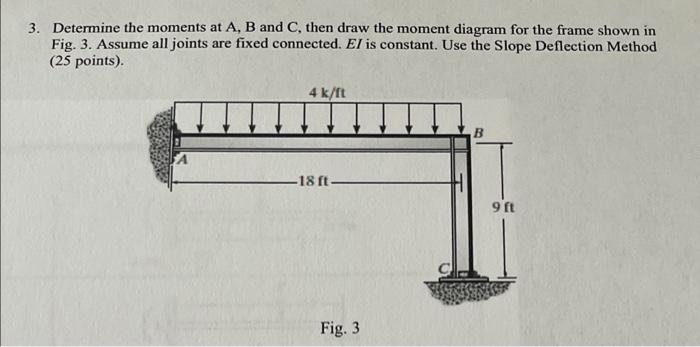

3. Determine the moments at A, B and C, then draw the moment diagram for the frame shown in Fig. 3. Assume all joints are fixed connected. El is constant. Use the Slope Deflection Method (25 points) 4k/ft B -18 ft 9 ft Fig. 3
