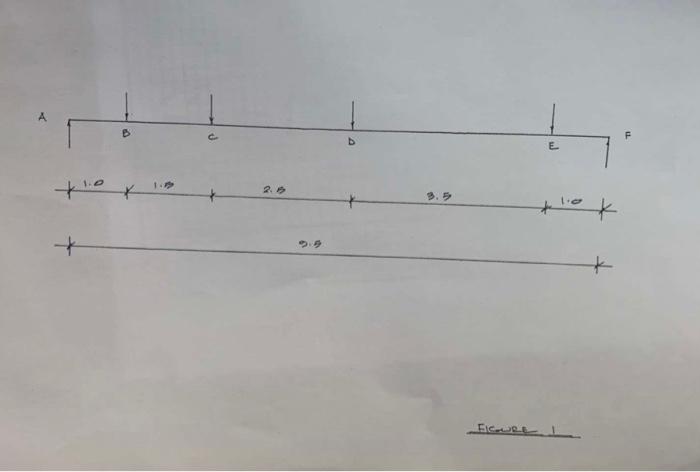

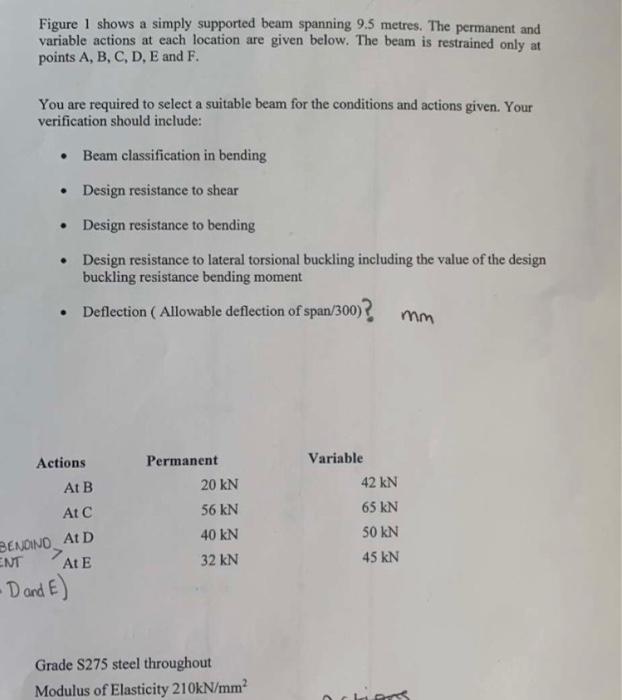

a Figure 1 shows a simply supported beam spanning 9.5 metres. The permanent and variable actions at each location are given below. The beam is restrained only at points A, B, C, D, E and F. You are required to select a suitable beam for the conditions and actions given. Your verification should include: • Beam classification in bending • Design resistance to shear • Design resistance to bending • Design resistance to lateral torsional buckling including the value of the design buckling resistance bending moment Deflection (Allowable deflection of span/300) ? . mm Actions At B At C Permanent 20 KN 56 kN 40 KN 32 KN Variable 42 KN 65 kN 50 KN 45 KN BENJOINO AD ENT At E -D and E) Grade S275 steel throughout Modulus of Elasticity 210kN/mm?
