Calculate the allowable stress design (ASD) withdrawal capacity of a lag screw in the connection below. The main member

Post by answerhappygod »

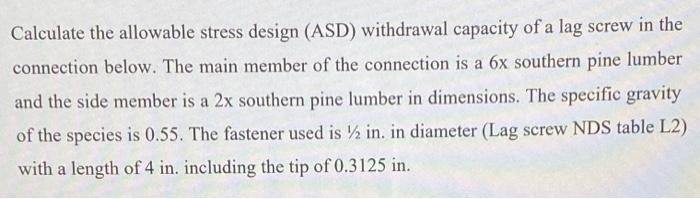

Calculate The Allowable Stress Design Asd Withdrawal Capacity Of A Lag Screw In The Connection Below The Main Member 1
Calculate The Allowable Stress Design Asd Withdrawal Capacity Of A Lag Screw In The Connection Below The Main Member 1 (26.71 KiB) Viewed 54 times
Calculate the allowable stress design (ASD) withdrawal capacity of a lag screw in the connection below. The main member of the connection is a 6x southern pine lumber and the side member is a 2x southern pine lumber in dimensions. The specific gravity of the species is 0.55. The fastener used is 12 in. in diameter (Lag screw NDS table L2) with a length of 4 in. including the tip of 0.3125 in.
