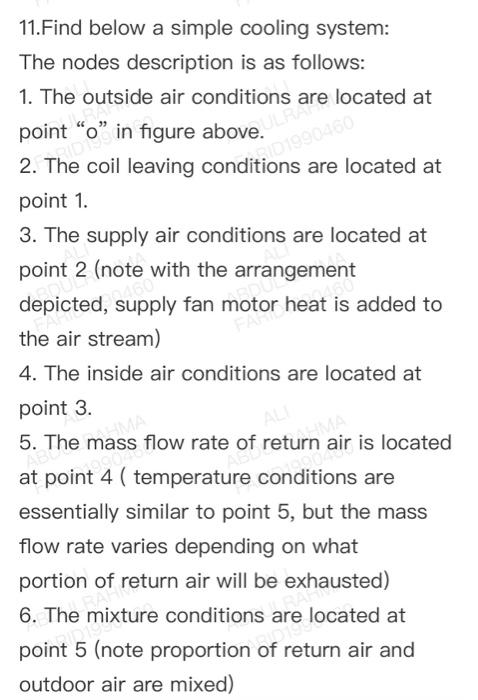

1990450 2. The 11. Find below a simple cooling system: The nodes description is as follows: 1. The outside air conditions are located at point“o” in figure above. coil leaving conditions are located at point 1. 3. The supply air conditions are located at point 2 (note with the arrangement depicted, supply fan motor heat is added to the air stream) 4. The inside air conditions are located at point 3. flow rate of return air is located at point 4 ( temperature conditions are essentially similar to point 5, but the mass flow rate varies depending on what portion of return air will be exhausted) 6. The mixture conditions are located at point 5 (note proportion of return air and outdoor air are mixed) 5. The MA

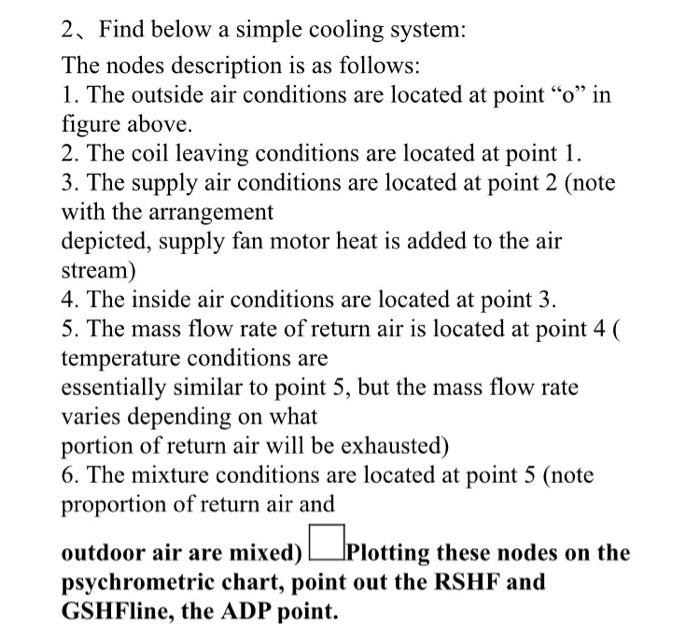

2. Find below a simple cooling system: The nodes description is as follows: 1. The outside air conditions are located at point “o” in figure above. 2. The coil leaving conditions are located at point 1. 3. The supply air conditions are located at point 2 (note with the arrangement depicted, supply fan motor heat is added to the air stream) 4. The inside air conditions are located at point 3. 5. The mass flow rate of return air is located at point 4 ( temperature conditions are essentially similar to point 5, but the mass flow rate varies depending on what portion of return air will be exhausted) 6. The mixture conditions are located at point 5 (note proportion of return air and outdoor air are mixed) plotting these nodes on the psychrometric chart, point out the RSHF and GSHFline, the ADP point.
