1. (30 pts) The tension splice below involves connecting a PL-20x1 to a C-12x30 using a bolted connection. Determine the

Post by answerhappygod »

1 30 Pts The Tension Splice Below Involves Connecting A Pl 20x1 To A C 12x30 Using A Bolted Connection Determine The 1
1 30 Pts The Tension Splice Below Involves Connecting A Pl 20x1 To A C 12x30 Using A Bolted Connection Determine The 1 (74.2 KiB) Viewed 36 times

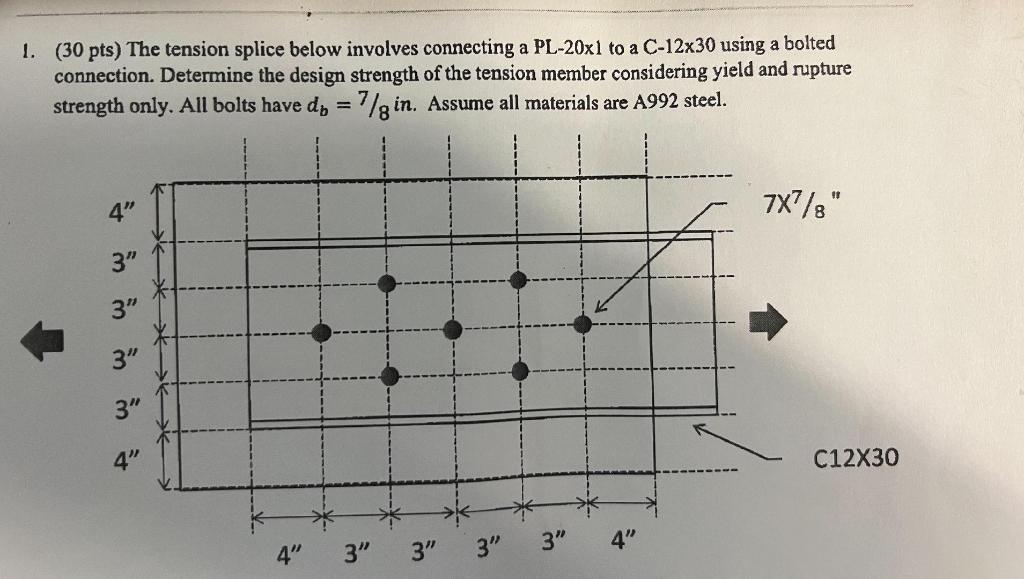

1. (30 pts) The tension splice below involves connecting a PL-20x1 to a C-12x30 using a bolted connection. Determine the design strength of the tension member considering yield and rupture strength only. All bolts have do = 7/8 in. Assume all materials are A992 steel. = 1 7x7/8" 4" 3" 3" 3" 3" 4" C12X30 4" 3" 3" 3" 3" 4"
