All Informations And Dimensions In Last Box 1 (46.9 KiB) Viewed 36 times
All Informations And Dimensions In Last Box 2 (8.87 KiB) Viewed 36 times

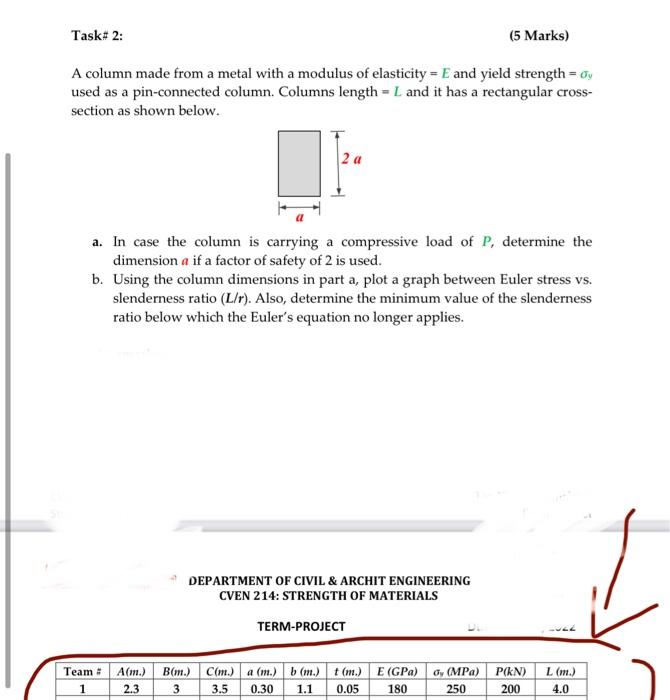

Task# 2: (5 Marks) A column made from a metal with a modulus of elasticity = E and yield strength = 0y used as a pin-connected column. Columns length = L and it has a rectangular cross- section as shown below. 2 a a. In case the column is carrying a compressive load of P, determine the dimension a if a factor of safety of 2 is used. b. Using the column dimensions in part a, plot a graph between Euler stress vs. slenderness ratio (L/r). Also, determine the minimum value of the slenderness ratio below which the Euler's equation no longer applies. DEPARTMENT OF CIVIL & ARCHIT ENGINEERING CVEN 214: STRENGTH OF MATERIALS TERM-PROJECT Team # A(m.) 2.3 B(m.) 3 Cm.) a (m.) 3.5 0.30 b (m.) 1.1 t (m.) 0.05 E (GPa) 180 Oy (MPa) 250 P(kN) 200 L (m.) 4.0 3
Team# 1 Am.) 2.3 B(m.) 3 C(mm.) 3.5 a (m.) b (m.) 0.30 1.1 (m.) 0.05 E (GPa) 180 0, (MPa) 250 P(kN) 200 L (n.) 4.0
