0.6 m А B 150 mm 10 kN m с D 200 mm 0.6 m E 150 mm 0.6 m

[answerhappygod]

1 (161.31 KiB) Viewed 33 times

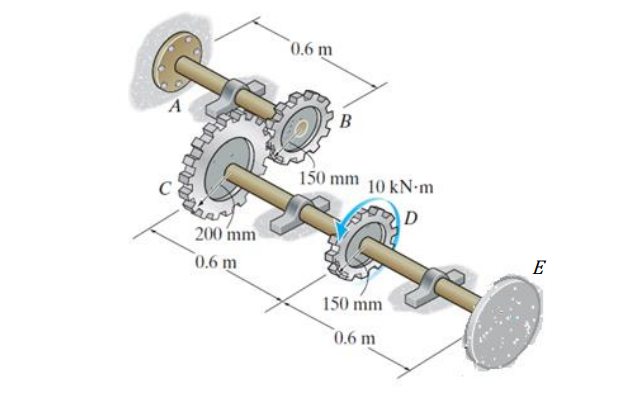

The shafts are made of steel and each has a diameter of 80 𝑚𝑚.
The shafts are fixed at points A and E.. The shear modulus of
steel is 𝐺𝑠 = 75 𝐺𝑃𝑎. (a) Find the maximum shear stress (b) Obtain
the maximum shear strain using Hooke’s law. (c) Show the stress
state on an infinitesimal element located where the maximum
shearing stress occurs and locate the point on the shaft
0.6 m А B 150 mm 10 kN m с D 200 mm 0.6 m E 150 mm 0.6 m
