Question 1 60 pts From the given beam loaded as shown, Let P = 10 kips, L = 5 ft, a = 2 ft. E = 29 x 10^6 psi, I = 722 i

Post by answerhappygod »

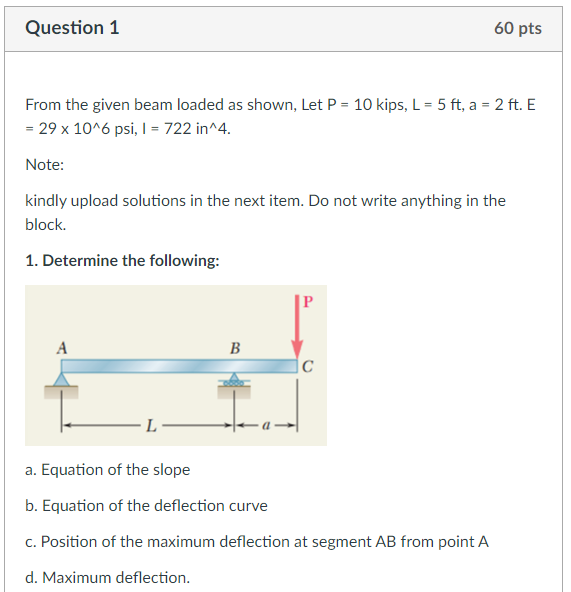

Question 1 60 Pts From The Given Beam Loaded As Shown Let P 10 Kips L 5 Ft A 2 Ft E 29 X 10 6 Psi I 722 I 1
Question 1 60 Pts From The Given Beam Loaded As Shown Let P 10 Kips L 5 Ft A 2 Ft E 29 X 10 6 Psi I 722 I 1 (45.57 KiB) Viewed 19 times
Question 1 60 pts From the given beam loaded as shown, Let P = 10 kips, L = 5 ft, a = 2 ft. E = 29 x 10^6 psi, I = 722 in^4. Note: kindly upload solutions in the next item. Do not write anything in the block. 1. Determine the following: P А B. С L a. Equation of the slope b. Equation of the deflection curve c. Position of the maximum deflection at segment AB from point A d. Maximum deflection.
