Considering the beam loaded as shown and the cross-section of the beam, determine the maximum flexural compressive stres

Post by answerhappygod »

Considering The Beam Loaded As Shown And The Cross Section Of The Beam Determine The Maximum Flexural Compressive Stres 1
Considering The Beam Loaded As Shown And The Cross Section Of The Beam Determine The Maximum Flexural Compressive Stres 1 (28.49 KiB) Viewed 21 times

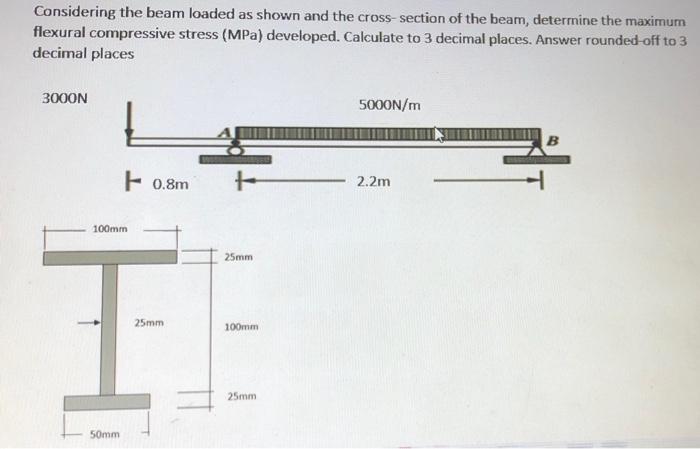

Considering the beam loaded as shown and the cross-section of the beam, determine the maximum flexural compressive stress (MPa) developed. Calculate to 3 decimal places. Answer rounded off to 3 decimal places 3000N 5000N/m E 0.8m 2.2m 100mm 25mm 1 25mm 100mm 25mm 50mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
