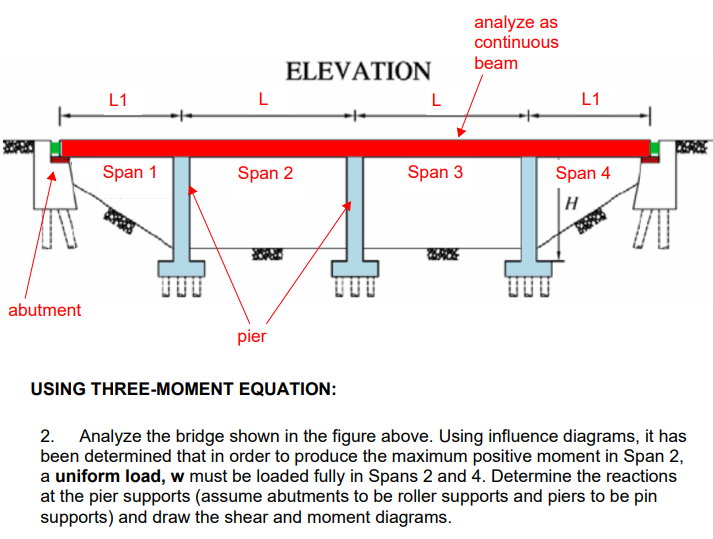

2.) Analyze the bridge shown in the figure above. Using
influence diagrams, it has been determined that in order to produce
the maximum positive moment in Span 2, a uniform load, w must be
loaded fully in Spans 2 and 4. Determine the reactions at the pier
supports (assume abutments to be roller supports and piers to be
pin supports) and draw the shear and moment diagrams.

2 Analyze The Bridge Shown In The Figure Above Using Influence Diagrams It Has Been Determined That In Order To Prod 1 (83.21 KiB) Viewed 27 times

3.) Analyze the same bridge with the uniform load, w fully
loaded in spans 2 and 3. Determine the reactions and draw the shear
and moment diagrams.
w=6kn/m
L=10m
L1= 5m
analyze as continuous beam ELEVATION L L1 L L1 Span 1 Span 2 Span 3 Span 4 H RE abutment pier USING THREE-MOMENT EQUATION: 2. Analyze the bridge shown in the figure above. Using influence diagrams, it has been determined that in order to produce the maximum positive moment in Span 2, a uniform load, w must be loaded fully in Spans 2 and 4. Determine the reactions at the pier supports (assume abutments to be roller supports and piers to be pin supports) and draw the shear and moment diagrams.
