The water-based manometer shown in Figure Q1(b) below is designed to measure pressures of up to a maximum of 100 Pa (gag

Post by answerhappygod »

The Water Based Manometer Shown In Figure Q1 B Below Is Designed To Measure Pressures Of Up To A Maximum Of 100 Pa Gag 1
The Water Based Manometer Shown In Figure Q1 B Below Is Designed To Measure Pressures Of Up To A Maximum Of 100 Pa Gag 1 (100.76 KiB) Viewed 49 times

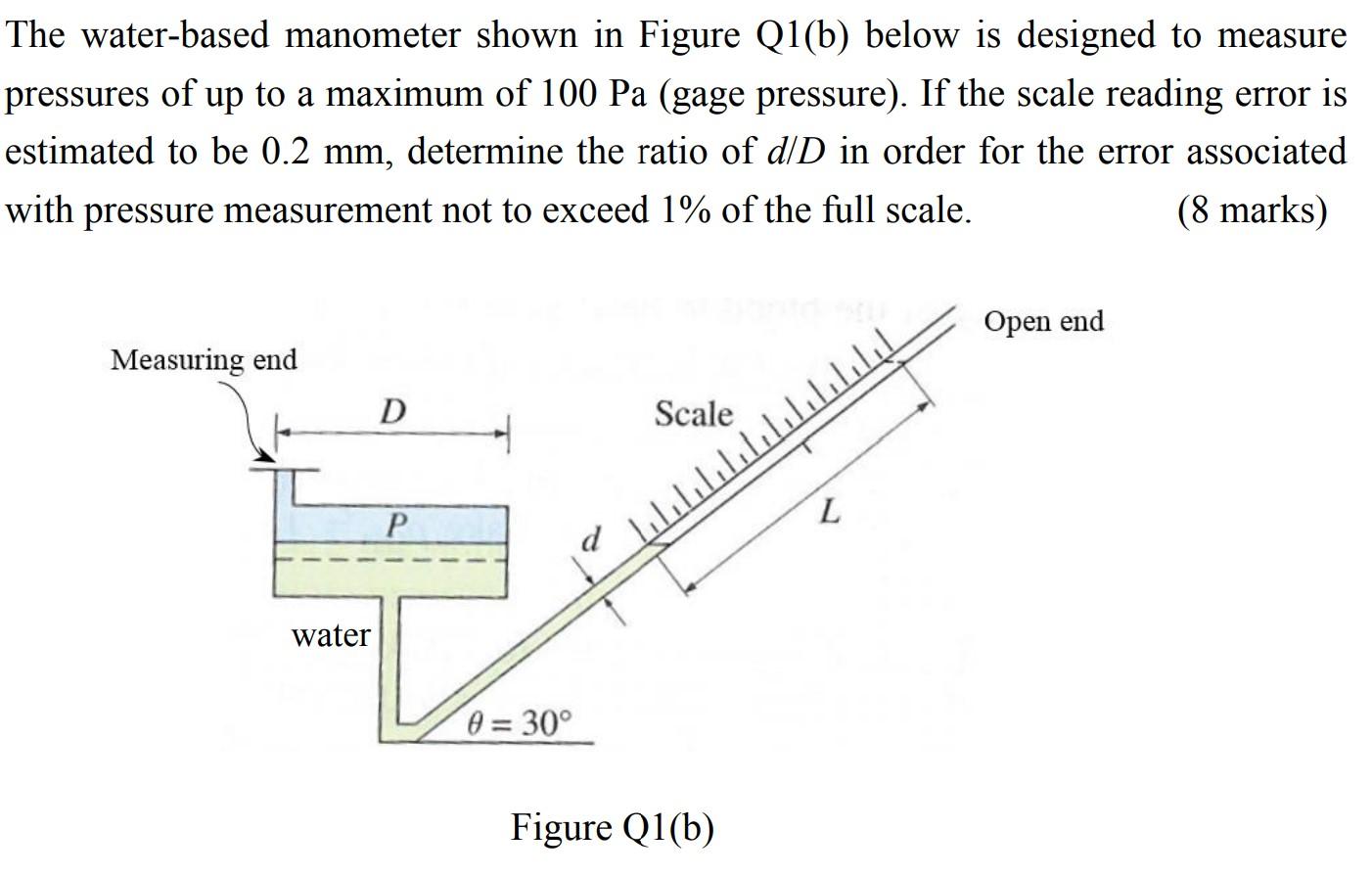

The water-based manometer shown in Figure Q1(b) below is designed to measure pressures of up to a maximum of 100 Pa (gage pressure). If the scale reading error is estimated to be 0.2 mm, determine the ratio of d/D in order for the error associated with pressure measurement not to exceed 1% of the full scale. (8 marks) Open end Measuring end D Scale L Р d لبالبلابل للبلايليا water = 30° Figure Q1(b)
