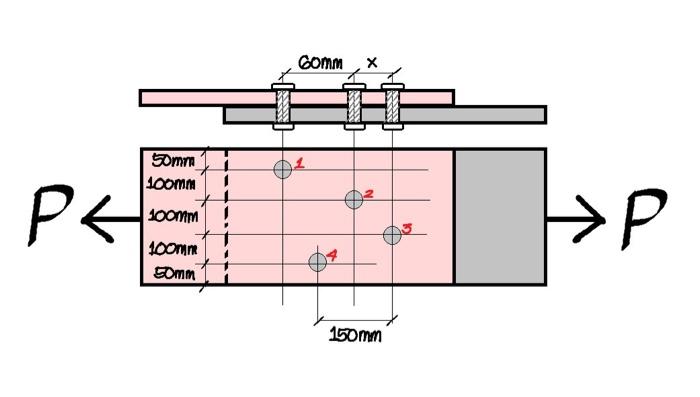

An A36 steel plate (12mm thick, in yellow) is connected to another A36 steel plate (12mm thick, in gray) using four bolts having a diameter of 33mm.
If "x" makes the net width along bolts 1-2-4 equal to that of the net width along bolts 1-2-3-4; Determine the most critical net area (in mm2).
An A36 Steel Plate 12mm Thick In Yellow Is Connected To Another A36 Steel Plate 12mm Thick In Gray Using Four Bolt 1 (23.1 KiB) Viewed 35 times
CommX 50min 100mm 02 PA 100mm HP 100mm Somm 150 mm
