1. A small bridge is carrying a truck moving from left to right. Using influence lines for beams: (P1=189 KN, P2=164 KN,
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1. A small bridge is carrying a truck moving from left to right. Using influence lines for beams: (P1=189 KN, P2=164 KN,

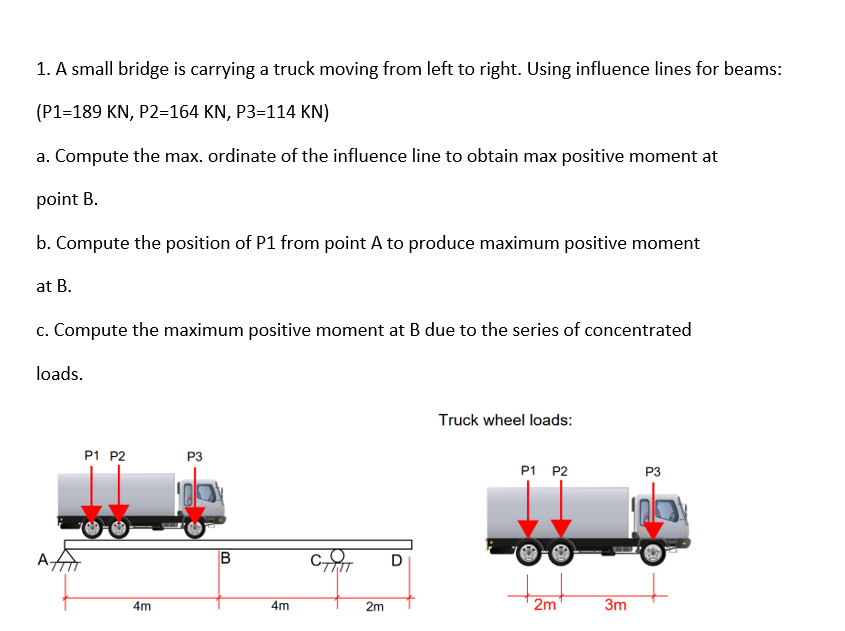

1. A small bridge is carrying a truck moving from left to right. Using influence lines for beams: (P1=189 KN, P2=164 KN, P3=114 KN) a. Compute the max. ordinate of the influence line to obtain max positive moment at point B. b. Compute the position of P1 from point A to produce maximum positive moment at B. c. Compute the maximum positive moment at B due to the series of concentrated loads. Truck wheel loads: P1 P2 P3 P1 P2 P3 AA 00 CAT D 4m 4m 2m 2m 3m
