Analyze the bridge shown in the figure. Using influence
diagrams, it has been determined that in order to produce the
maximum positive moment in Span 2, a uniform load, w must be loaded
fully in Spans 2 and 4. Determine the reactions at the pier
supports (assume abutments to be roller supports and piers to be
pin supports) and draw the shear and moment diagrams.
Assume:
w = 11kN/m
L = 15m
L1 = 10m
Analyze The Bridge Shown In The Figure Using Influence Diagrams It Has Been Determined That In Order To Produce The Ma 1 (61.04 KiB) Viewed 44 times
Need Answer ASAP

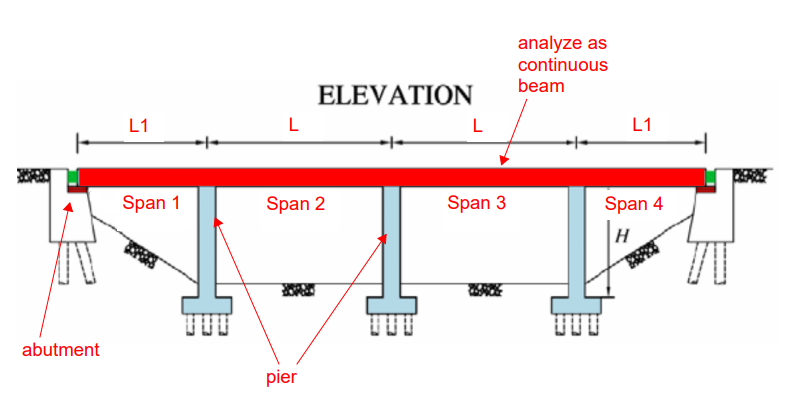

analyze as continuous beam ELEVATION L L1 L L1 Span 1 Span 2 Span 3 Span 4 H abutment pier
