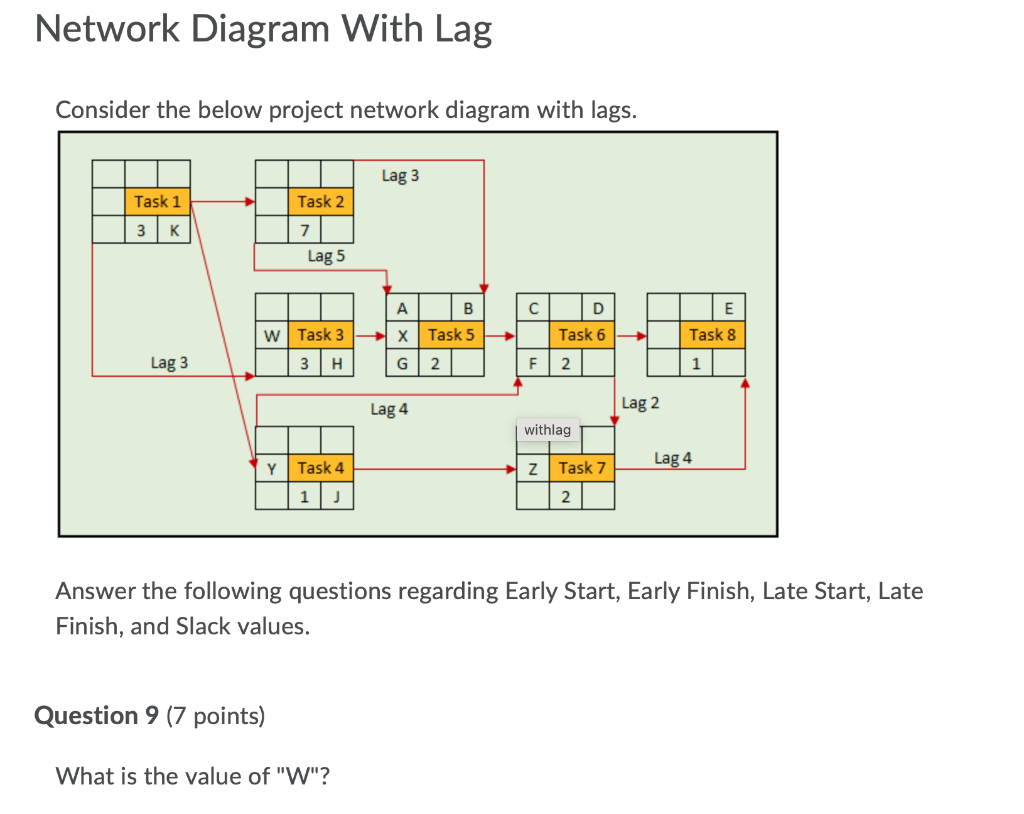

Network Diagram With Lag Consider the below project network diagram with lags. Lag 3 Task 1 3K 3 Task 2 7 Lag 5 A B с D E W Task 3 x Task 5 → Task 6 Task 8 Lag 3 3 H G 2 F | 2 1 Lag 4 Lag 2 withlag Lag 4 Y Task 4 Z Task 7 1 J 2 Answer the following questions regarding Early Start, Early Finish, Late Start, Late Finish, and Slack values. Question 9 (7 points) What is the value of "W"?
Answer the following questions regarding Early Start, Early Finish, Late Start, Late Finish, and Slack values. Question 9 (7 points) What is the value of "W"? 4 3 5 1 0 Question 10 (7 points) What is the value of "F"?
Question 10 (7 points) What is the value of "F"? 19 11 13 12 O 15
What is the value of "A"? 7 8 11 9 10
