11C). What is the current in each resistor? Hint: find the equivalent resistance, then find total current which gets you

Post by answerhappygod »

11c What Is The Current In Each Resistor Hint Find The Equivalent Resistance Then Find Total Current Which Gets You 1
11c What Is The Current In Each Resistor Hint Find The Equivalent Resistance Then Find Total Current Which Gets You 1 (25.31 KiB) Viewed 20 times

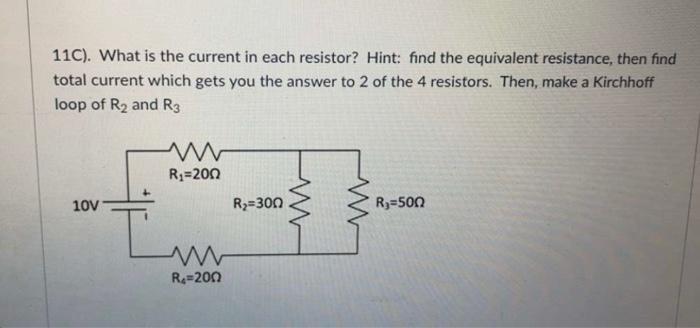

11C). What is the current in each resistor? Hint: find the equivalent resistance, then find total current which gets you the answer to 2 of the 4 resistors. Then, make a Kirchhoff loop of R₂ and R3 10V www R₁=200 I'm R₂=200 R₂=300 www www R₁=500
