A fish has been hooked and is pulling on the line as shown in the figure above. If the pole makes an angle of 25° with t

Post by answerhappygod »

A Fish Has Been Hooked And Is Pulling On The Line As Shown In The Figure Above If The Pole Makes An Angle Of 25 With T 1
A Fish Has Been Hooked And Is Pulling On The Line As Shown In The Figure Above If The Pole Makes An Angle Of 25 With T 1 (37.94 KiB) Viewed 31 times

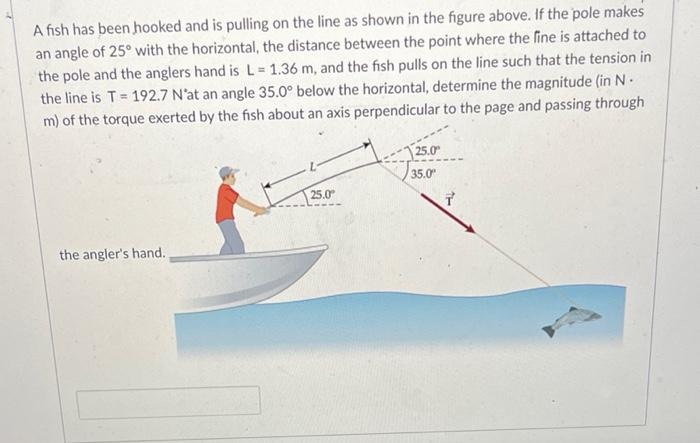

A fish has been hooked and is pulling on the line as shown in the figure above. If the pole makes an angle of 25° with the horizontal, the distance between the point where the fine is attached to the pole and the anglers hand is L = 1.36 m, and the fish pulls on the line such that the tension in the line is T = 192.7 N'at an angle 35.0° below the horizontal, determine the magnitude (in N m) of the torque exerted by the fish about an axis perpendicular to the page and passing through the angler's hand. 25.0 25.0 35.0⁰ T
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
