The cell in figure 3, below, is in G1. There are two chromosomes present, chromosome 19 and the sex chromosomes. Figure

[answerhappygod]

The Cell In Figure 3 Below Is In G1 There Are Two Chromosomes Present Chromosome 19 And The Sex Chromosomes Figure 1 (57.07 KiB) Viewed 47 times

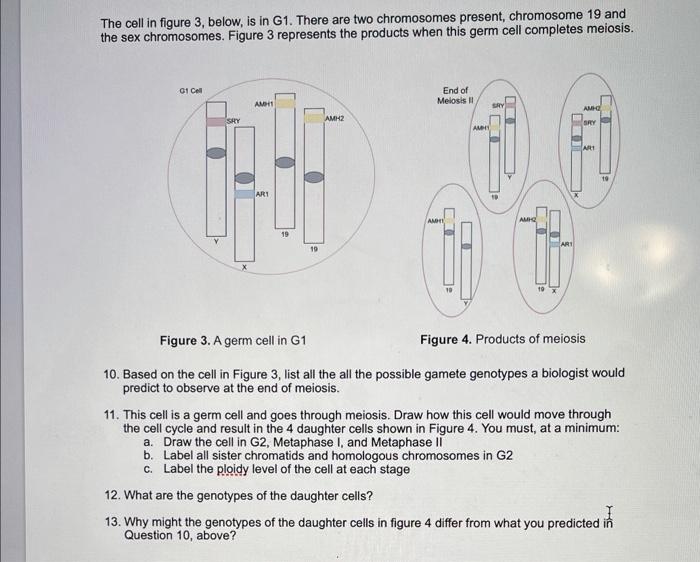

The cell in figure 3, below, is in G1. There are two chromosomes present, chromosome 19 and the sex chromosomes. Figure 3 represents the products when this germ cell completes meiosis. G1 Cell AMH1 SRY 3468 ART 19 19 AMH2 End of Melosis II AMPE CI AM SCO 1 AM 19 x ARI AMH SRY ART 19 Figure 3. A germ cell in G1 Figure 4. Products of meiosis 10. Based on the cell in Figure 3, list all the all the possible gamete genotypes a biologist would predict to observe at the end of meiosis. 11. This cell is a germ cell and goes through meiosis. Draw how this cell would move through the cell cycle and result in the 4 daughter cells shown in Figure 4. You must, at a minimum: a. Draw the cell in G2, Metaphase I, and Metaphase II b. Label all sister chromatids and homologous chromosomes in G2 c. Label the ploidy level of the cell at each stage 12. What are the genotypes of the daughter cells? ที่ 13. Why might the genotypes of the daughter cells in figure 4 differ from what you predicted Question 10, above?
