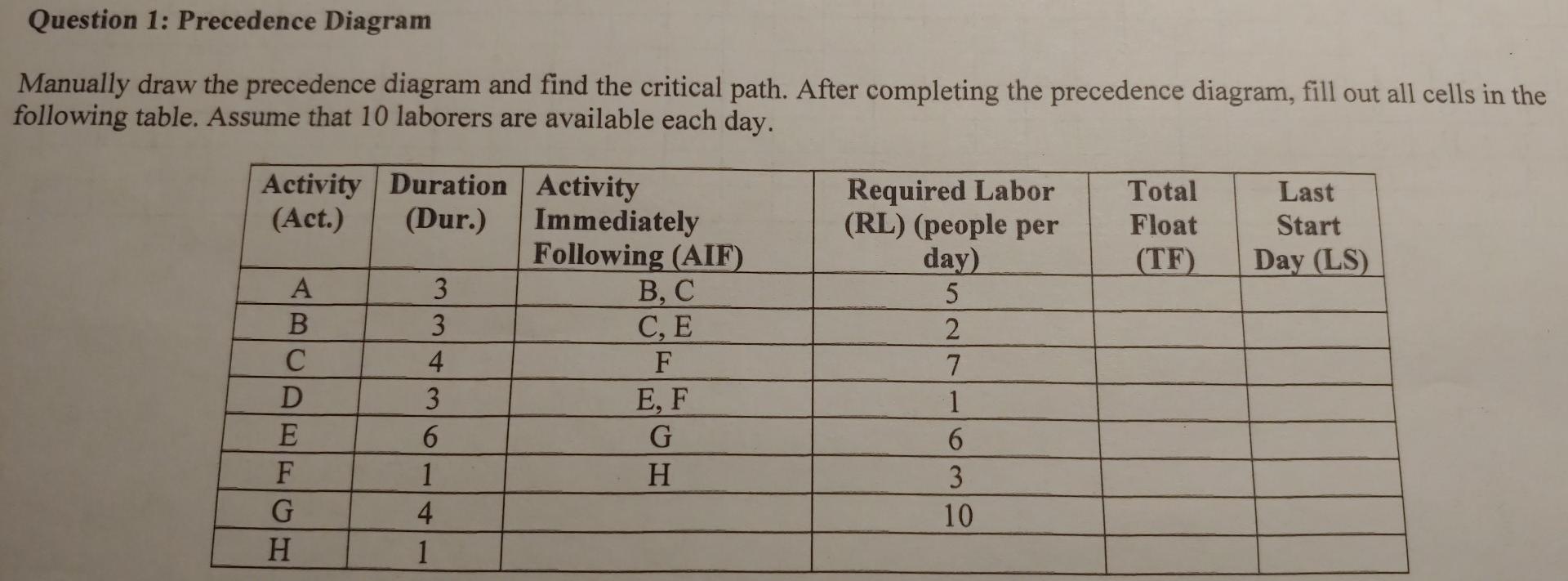

Question 1: Precedence Diagram Manually draw the precedence diagram and find the critical path. After completing the precedence diagram, fill out all cells in the following table. Assume that 10 laborers are available each day. Activity Duration (Act.) (Dur.) A B C D E F G H 3 3 4 3 6 1 4 1 Activity Immediately Following (AIF) B, C C, E F E, F G H Required Labor (RL) (people per day) 5 2 7 1 6 3 10 Total Float (TF) Last Start Day (LS)

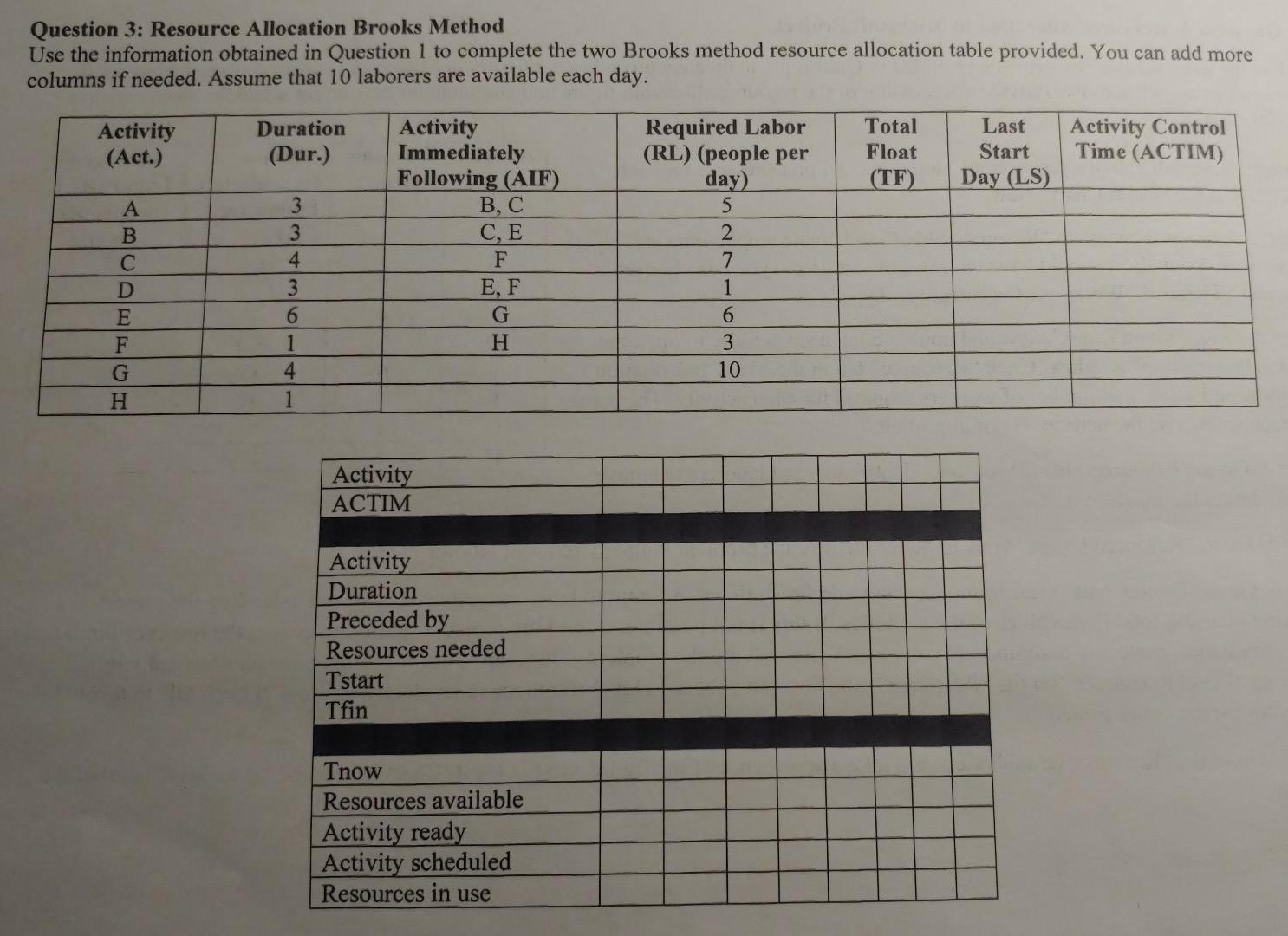

Question 3: Resource Allocation Brooks Method Use the information obtained in Question 1 to complete the two Brooks method resource allocation table provided. You can add more columns if needed. Assume that 10 laborers are available each day. Activity (Act.) A B C D E F G H Duration (Dur.) 3 3 4 3 6 1 4 1 Activity Immediately Following (AIF) B, C C, E F Activity ACTIM Activity Duration Tstart Tfin E, F G H Preceded by Resources needed Tnow Resources available Activity ready Activity scheduled Resources in use Required Labor (RL) (people per day) 5 2 7 1 6 3 10 Total Float (TF) Last Start Day (LS) Activity Control Time (ACTIM)
