The below figure shows a given vertical column load, P=120,000 lb, that is applied to a rigid concrete foundation with d

Post by answerhappygod »

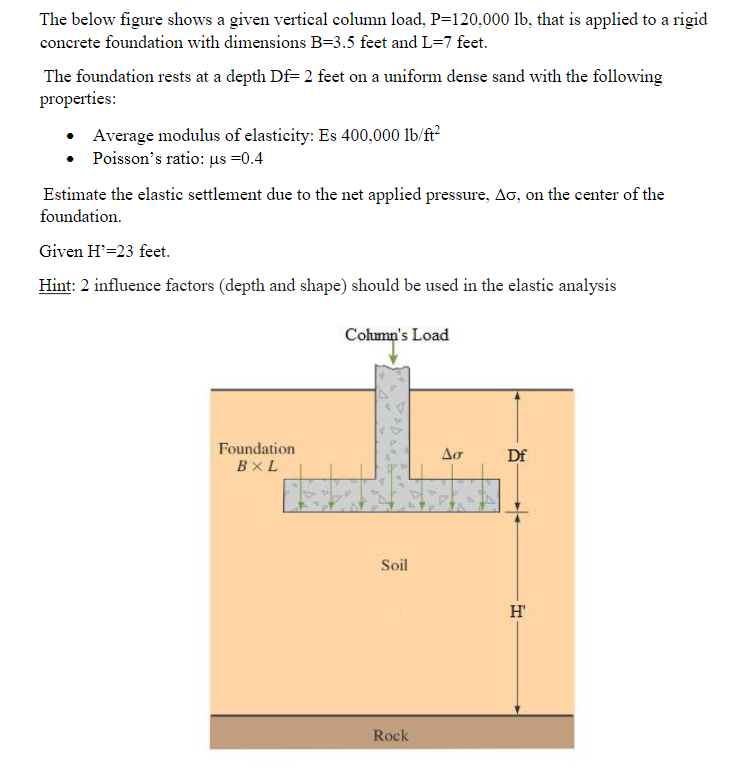

The Below Figure Shows A Given Vertical Column Load P 120 000 Lb That Is Applied To A Rigid Concrete Foundation With D 1
The Below Figure Shows A Given Vertical Column Load P 120 000 Lb That Is Applied To A Rigid Concrete Foundation With D 1 (114.12 KiB) Viewed 22 times
The below figure shows a given vertical column load, P=120,000 lb, that is applied to a rigid concrete foundation with dimensions B=3.5 feet and L=7 feet. The foundation rests at a depth DF= 2 feet on a uniform dense sand with the following properties: • Average modulus of elasticity: Es 400,000 lb/ft? • Poisson's ratio: us =0.4 Estimate the elastic settlement due to the net applied pressure, Ao, on the center of the foundation. Given H'=23 feet. Hint: 2 influence factors (depth and shape) should be used in the elastic analysis Column's Load Foundation BXL Ao DE Soil Η' Rock
