In the following statically determinate
beam, L1 = 8
m and L2 =
12m.
Using Müller-Breslau's principle, indicate the ordinate value
(please show working) and direction at each point of the
influence lines for:
a) the reaction force
at A (+RA);
b) the shear force
at C+ (VC+);
c) the shear force
at D- (VD-);
d) the bending moment
at E (ME).

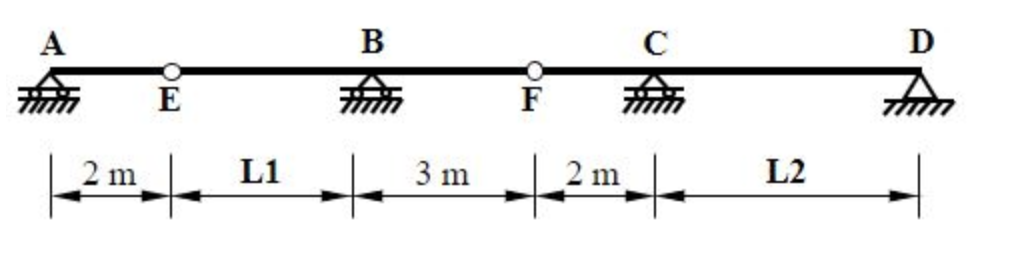

In The Following Statically Determinate Beam L1 8 M And L2 12m Using Muller Breslau S Principle Indicate The Ordi 1 (90.62 KiB) Viewed 30 times
