In the following statically determinate
beam, L1 = 2
m and L2 =
3m. Using
Müller-Breslau's principle, indicate the ordinate value and
direction at each point of the influence lines for:
a) the vertical reaction
at C;
b) the moment at B;
c) the vertical reaction
at D.
Please Show Working for Ordinate
Calculations.

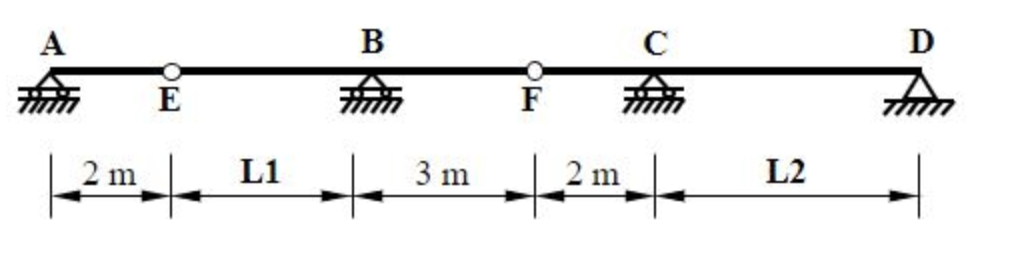

In The Following Statically Determinate Beam L1 2 M And L2 3m Using Muller Breslau S Principle Indicate The Ordin 1 (90.62 KiB) Viewed 19 times
A D B 論 С 論 E F Then 2 m L1 3 m 2 m L2 72m-
