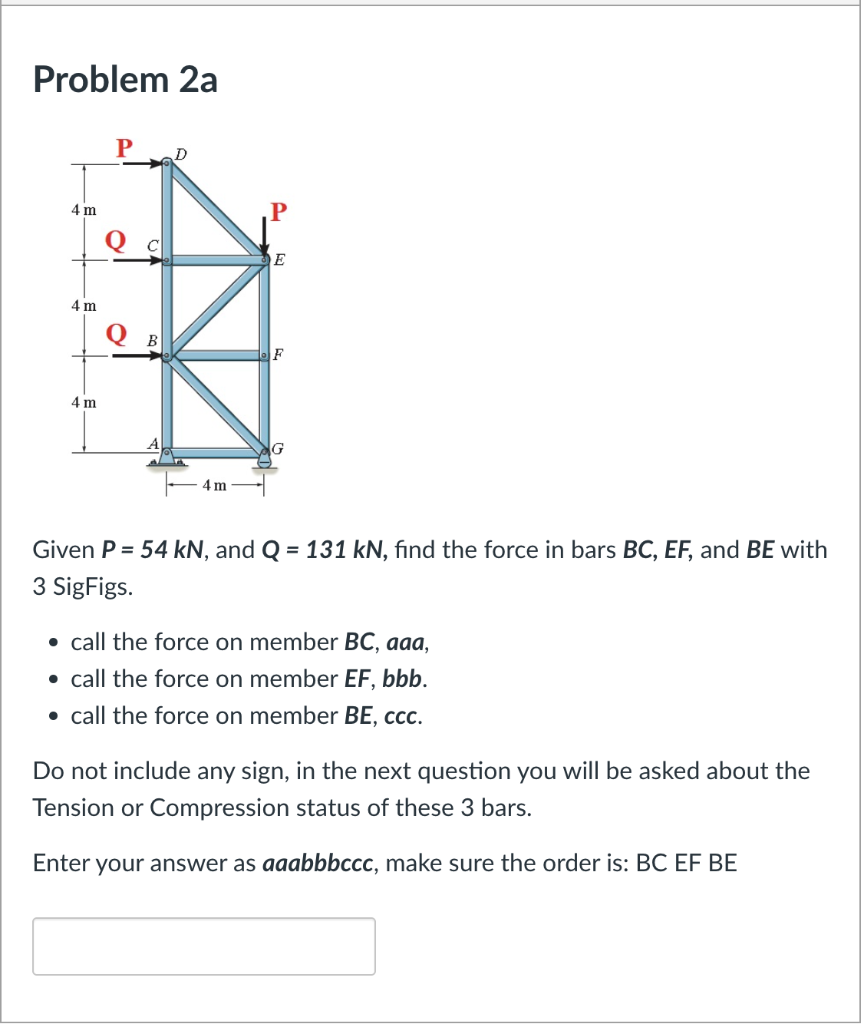

Problem 2a P 4 m P E 4 m B 4 m 4 m = Given P = 54 kN, and Q = 131 kN, find the force in bars BC, EF, and BE with 3 SigFi

[answerhappygod]

Problem 2a P 4 M P E 4 M B 4 M 4 M Given P 54 Kn And Q 131 Kn Find The Force In Bars Bc Ef And Be With 3 Sigfi 1 (143.68 KiB) Viewed 28 times

Problem 2a P 4 m P E 4 m B 4 m 4 m = Given P = 54 kN, and Q = 131 kN, find the force in bars BC, EF, and BE with 3 SigFigs. • call the force on member BC, aaa, • call the force on member EF, bbb. • call the force on member BE, ccc. Do not include any sign, in the next question you will be asked about the Tension or Compression status of these 3 bars. Enter your answer as aaabbbccc, make sure the order is: BC EF BE
