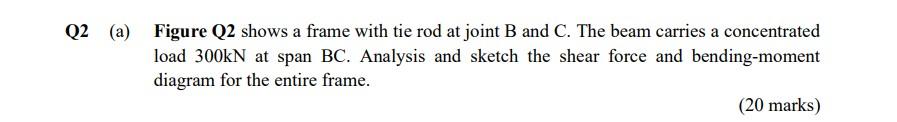

Q2 (a) Figure Q2 shows a frame with tie rod at joint B and C. The beam carries a concentrated load 300kN at span BC. Analysis and sketch the shear force and bending-moment diagram for the entire frame. (20 marks)
Tie Rod B 4 EI A 4 m- 300KN 2EI FIGURE Q2 -4 m- ( ΕΙ 10 m D
