A 2p B E Figure Q1 C P A D D Q1 A Figure Q1 Shows A Statically Determinate Plane Truss Subjected To A Vertical Conc 1 (18.07 KiB) Viewed 26 times
a 2P B E + FIGURE Q1 C P a D D

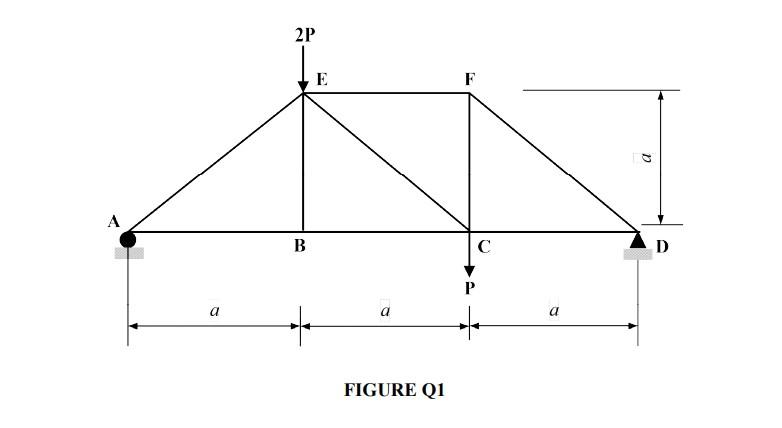

Q1 (a) Figure Q1 shows a statically determinate plane truss subjected to a vertical concentrated load at C and E. The truss is made using steel with Modulus of Elasticity is 210 GPa, and the cross section area for all members are 30 mm². Assuming P is the month of your birthday and a is half of P, determine the vertical displacement at F. The solution can be based on Method of Conservation Energy or Method of Virtual Work. (21 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
