The T-shape shown in the figure is used as a tension member. Given that the gross area Ag2556 mm2.t-10 mm, gross depth d

Post by answerhappygod »

The T Shape Shown In The Figure Is Used As A Tension Member Given That The Gross Area Ag2556 Mm2 T 10 Mm Gross Depth D 1
The T Shape Shown In The Figure Is Used As A Tension Member Given That The Gross Area Ag2556 Mm2 T 10 Mm Gross Depth D 1 (24.07 KiB) Viewed 29 times

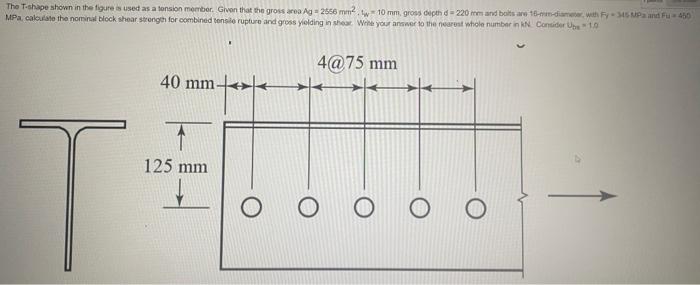

The T-shape shown in the figure is used as a tension member. Given that the gross area Ag2556 mm2.t-10 mm, gross depth d=220 mm and bolts are 16-mm-diameter, with Fy345 MPa and Fu-450 MPa, calculate the nominal block shear strength for combined tensile rupture and gross yielding in shear Write your answer to the nearest whole number in KN Consider Ube-1.0 4@75 mm 40 mm- 125 mm O O
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
