(c) A cross section of simply supported plate girder is shown in Figure Q4 (c). Given that steel stress, o = 250 N/mm².

Post by answerhappygod »

C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 1
C A Cross Section Of Simply Supported Plate Girder Is Shown In Figure Q4 C Given That Steel Stress O 250 N Mm 1 (16.06 KiB) Viewed 28 times
COURSE: STRUCTURAL ANALYSIS
please answer as soon as possible for many voteups

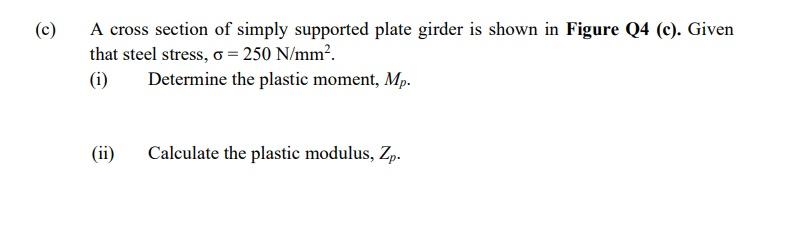

(c) A cross section of simply supported plate girder is shown in Figure Q4 (c). Given that steel stress, o = 250 N/mm². (i) Determine the plastic moment, Mp. (ii) Calculate the plastic modulus, Zp.
20.6 914.4 25.4 + 228.6 mm -7.9
