Figure 3 shows a concentrated force load exerted on the edge of a triangular element. Given E=210GPa,v=0.3,t=0.02 m and

Post by answerhappygod »

Figure 3 Shows A Concentrated Force Load Exerted On The Edge Of A Triangular Element Given E 210gpa V 0 3 T 0 02 M And 1
Figure 3 Shows A Concentrated Force Load Exerted On The Edge Of A Triangular Element Given E 210gpa V 0 3 T 0 02 M And 1 (46.04 KiB) Viewed 30 times

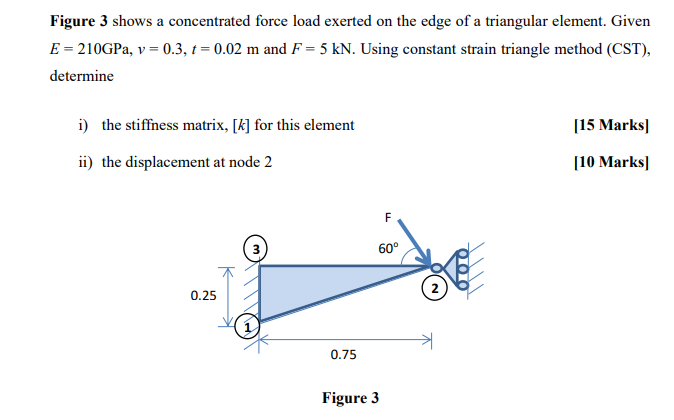

Figure 3 shows a concentrated force load exerted on the edge of a triangular element. Given E=210GPa,v=0.3,t=0.02 m and F=5kN. Using constant strain triangle method (CST), determine i) the stiffness matrix, [k] for this element [15 Marks] ii) the displacement at node 2 [10 Marks] Figure 3
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
