Figure 2 shows the plane truss with A=2 cm2 and E=200GPa, determine: i) discretization information of the plane truss [3

[answerhappygod]

Figure 2 Shows The Plane Truss With A 2 Cm2 And E 200gpa Determine I Discretization Information Of The Plane Truss 3 1 (43.41 KiB) Viewed 24 times

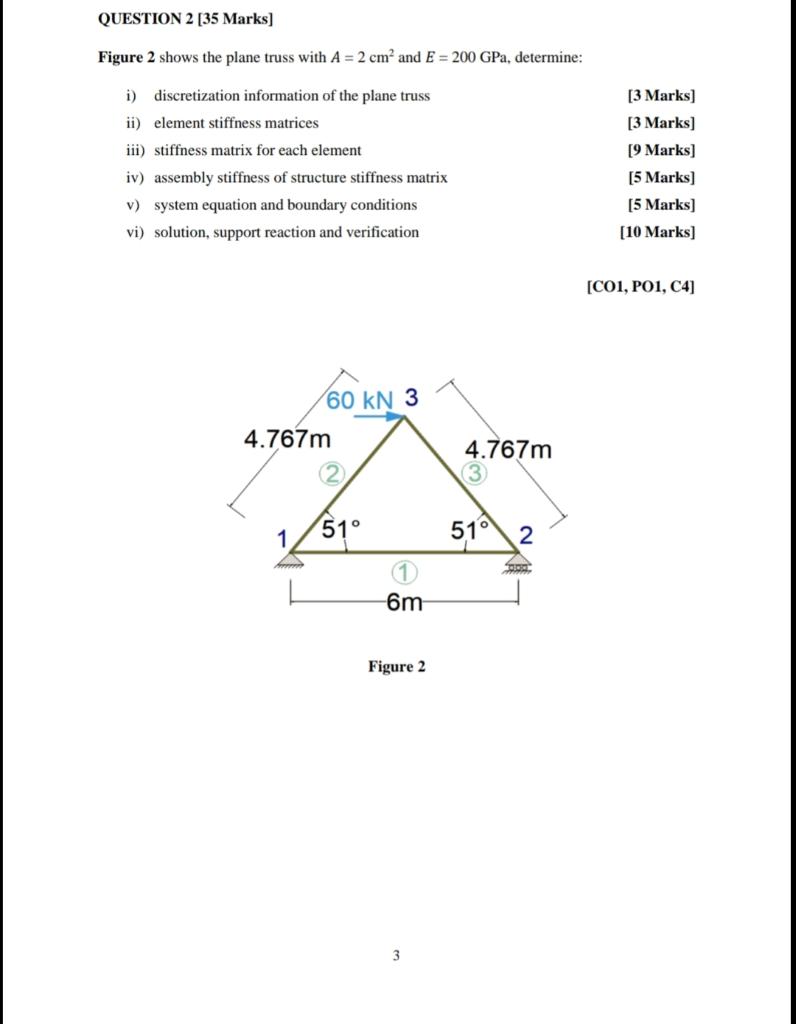

Figure 2 shows the plane truss with A=2 cm2 and E=200GPa, determine: i) discretization information of the plane truss [3 Marks] ii) element stiffness matrices [3 Marks] iii) stiffness matrix for each element [9 Marks] iv) assembly stiffness of structure stiffness matrix [5 Marks] v) system equation and boundary conditions [5 Marks] vi) solution, support reaction and verification [10 Marks] [CO1,PO1,C4] Figure 2
