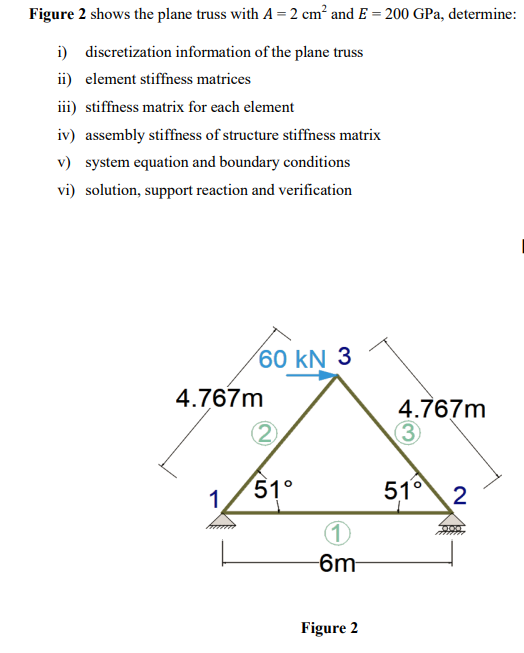

Figure 2 shows the plane truss with A=2 cm2 and E=200GPa, determine: i) discretization information of the plane truss ii

[answerhappygod]

Figure 2 Shows The Plane Truss With A 2 Cm2 And E 200gpa Determine I Discretization Information Of The Plane Truss Ii 1 (64.82 KiB) Viewed 20 times

Figure 2 shows the plane truss with A=2 cm2 and E=200GPa, determine: i) discretization information of the plane truss ii) element stiffness matrices iii) stiffness matrix for each element iv) assembly stiffness of structure stiffness matrix v) system equation and boundary conditions vi) solution, support reaction and verification Figure 2
